SKU: TRD2840

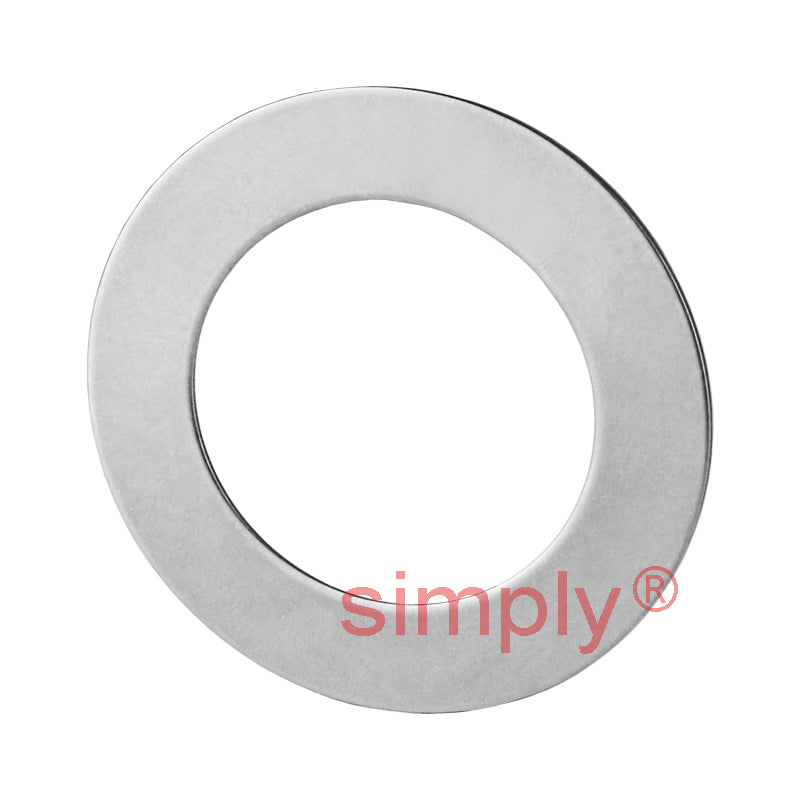

TRD2840 Needle Roller Thrust Washer 1.75x2.5x0.125 inch
- Regular price
- €8,66 ex VAT
- Sale price
- €8,66
- Regular price
-
In stock
Quantity Price Breaks
10
€7,71
19
€7,27
29
€7,19
39
€7,10
49
€7,01
74
€6,93
99
€6,50
199
€6,41
249
€6,32
499
€6,24
999
€6,06
SKU:
TRD2840
TRD2840 Needle Roller Thrust Washer 1.75x2.5x0.125 inch
- Regular price
- €8,66 ex VAT
- Sale price
- €8,66
- Regular price
-
Description
|
TRA Series Thrust Washers: Made of spring steel these thrust washers are hardened and polished. These washers enable a very economic bearing arrangements and serve as both shaft and housing raceways having moderate stiffness and running accuracy. The series consists of TRA, TRB, TRC, TRD and TRE washers varying in thickness only. Benefits: Economical in the use of space, accurately machined and polished, hardened spring steel, moderate running accuracy and stiffness, inexpensive. |
Technical
| d | = | 1.75 inch |
| d1 | = | 2.5 inch |
| h min | = | 0.125 inch |
| h max | = | 0.126 inch |
| Bearing | = | NTA2840 |
| Pilot min | = | 1.747 inch |
| Pilot max | = | 1.750 inch |
| Dia to clear washer | = | 2.531 inch |
| Weight | = | 0.084 lbs |
