SKU: TBS-DS-10B-12
12 Tooth 10B Tapered Bore Double Simplex Sprocket 5/8 inch Pitch Chain
- Regular price
- €19,96 ex VAT
- Sale price
- €19,96
- Regular price
-
In stock
Quantity Price Breaks
5
€17,76
9
€16,77
19
€16,57
29
€16,37
49
€16,17
74
€15,97
99
€14,97
199
€14,77
249
€14,57
499
€14,37
999
€13,97
SKU:
TBS-DS-10B-12
12 Tooth 10B Tapered Bore Double Simplex Sprocket 5/8 inch Pitch Chain
- Regular price
- €19,96 ex VAT
- Sale price
- €19,96
- Regular price
-
Description
Tapered Bore Double Simplex Sprockets: Small sprockets are usually manufactured from C45 Steel. These taper bore double simplex sprockets accept tapered locking bushes in a wide variety of shaft sizes to allow the end-user to easily fit the sprocket to the shaft with minimal effort and no machining.
Available in a comprehensive range of British Standard Simplex, Duplex and Triplex sizes. Pilot Bore variants available if required.
Benefits: Universal on the shelf stock - wide range of tapered locking bushes and shaft sizes available to choose from. Durable and hard-wearing.
Available in a comprehensive range of British Standard Simplex, Duplex and Triplex sizes. Pilot Bore variants available if required.
Benefits: Universal on the shelf stock - wide range of tapered locking bushes and shaft sizes available to choose from. Durable and hard-wearing.

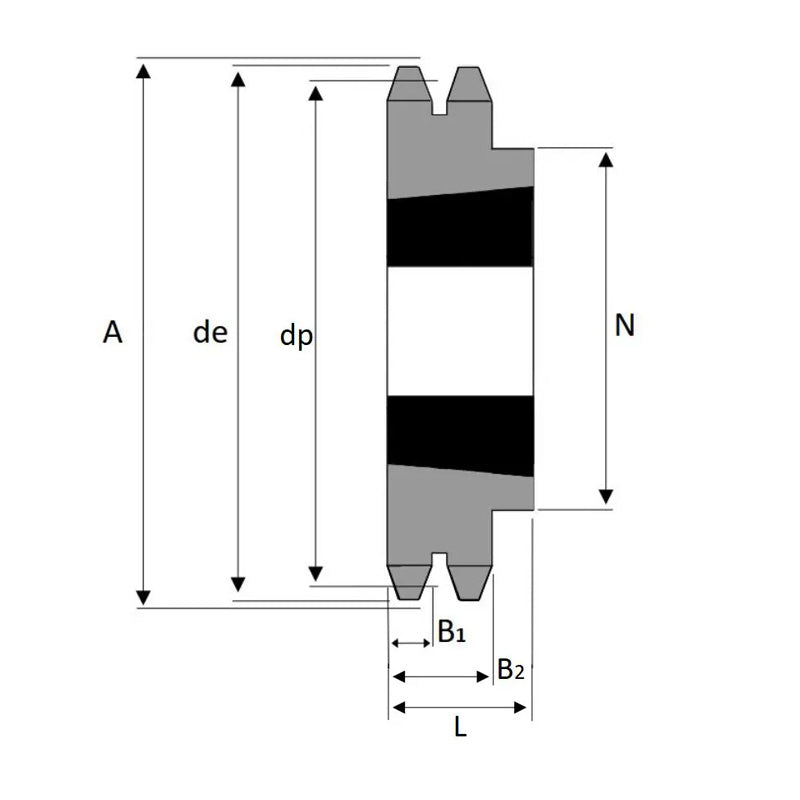

Technical
| No. of Teeth | = | 12 |
| Pitch Diameter dp | = | 61.34mm |
| Outer Diameter de | = | 68mm |
| Hub Diameter N | = | 45mm |
| Width B | = | 36.5mm |
| Chamfer C | = | 1.6mm |
| Tooth Radius r3 | = | 16mm |
| Tooth Width b1 | = | 9.2mm |
| Taper Bush Series | = | < |
| a href=" | = | advanced_search_result.php?& |
| keywords=1108+taperlock" | = | > |
| 1108< | = | span style=" |
| color:blue" | = | > |
| Click Here< | = | /span> |
| < | = | /a> |
| = | Weight | |
| 0.294 kg | = | N/A |
