SKU: TBS-DS-08B-15

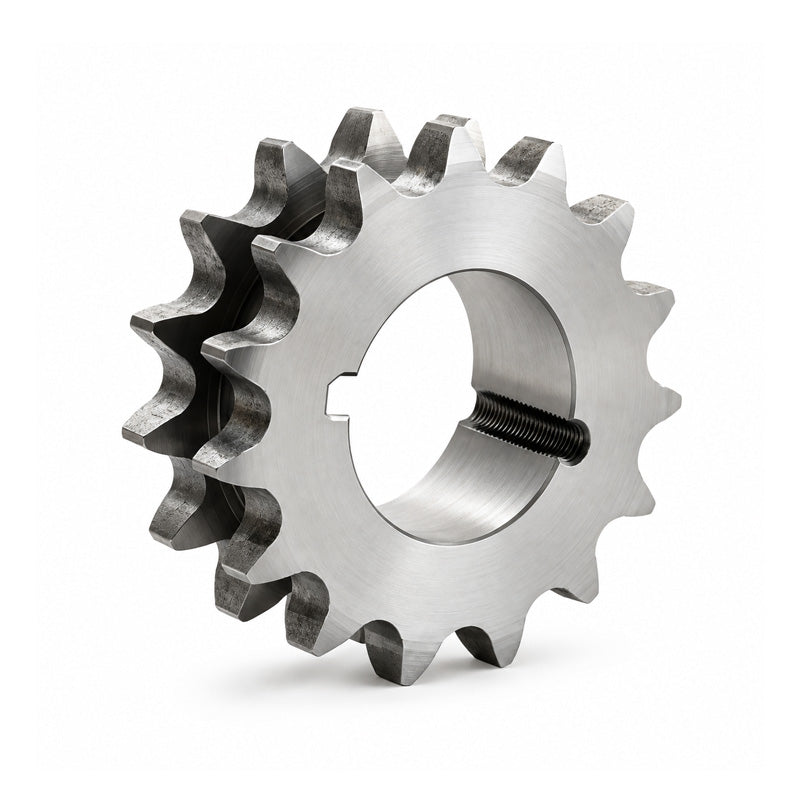

15 Tooth 08B Tapered Bore Double Simplex Sprocket for 1/2 inch Pitch Chain
- Regular price
- €20,84 ex VAT
- Sale price
- €20,84
- Regular price
-
In stock
Quantity Price Breaks
5
€18,55
9
€17,51
19
€17,30
29
€17,09
49
€16,88
74
€16,67
99
€15,63
199
€15,42
249
€15,21
499
€15,00
999
€14,59
SKU:
TBS-DS-08B-15
15 Tooth 08B Tapered Bore Double Simplex Sprocket for 1/2 inch Pitch Chain
- Regular price
- €20,84 ex VAT
- Sale price
- €20,84
- Regular price
-
Description
Tapered Bore Double Simplex Sprockets: Small sprockets are usually manufactured from C45 Steel. These taper bore double simplex sprockets accept tapered locking bushes in a wide variety of shaft sizes to allow the end-user to easily fit the sprocket to the shaft with minimal effort and no machining.
Available in a comprehensive range of British Standard Simplex, Duplex and Triplex sizes. Pilot Bore variants available if required.
Benefits: Universal on the shelf stock - wide range of tapered locking bushes and shaft sizes available to choose from. Durable and hard-wearing.
Available in a comprehensive range of British Standard Simplex, Duplex and Triplex sizes. Pilot Bore variants available if required.
Benefits: Universal on the shelf stock - wide range of tapered locking bushes and shaft sizes available to choose from. Durable and hard-wearing.
Technical

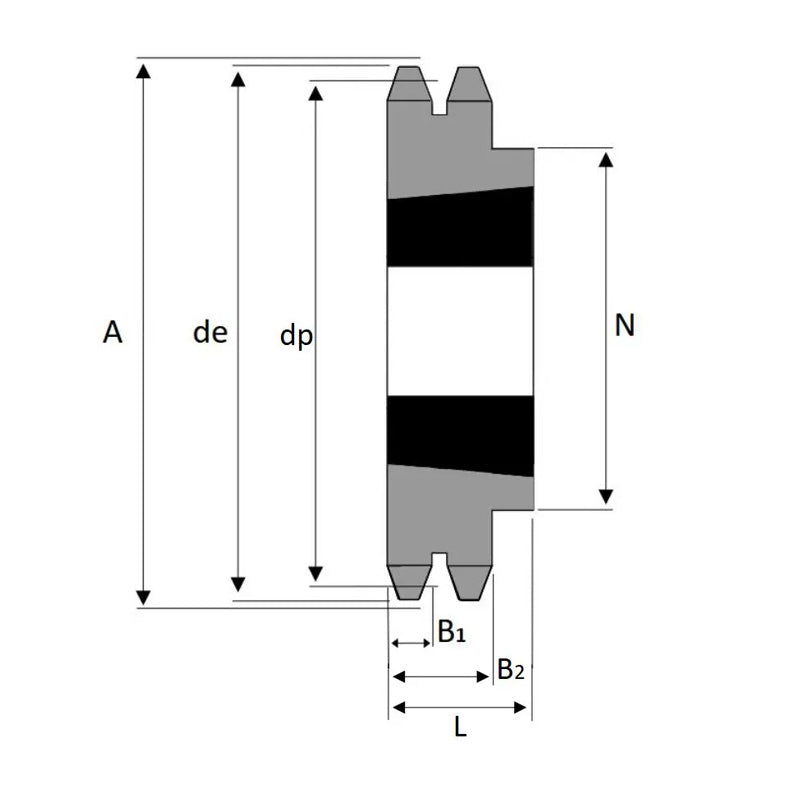

| No. of Teeth | = | 15 |
| Pitch Diameter dp | = | 61.09mm |
| Outer Diameter de | = | 65.5mm |
| Hub Diameter N | = | 45mm |
| Width B | = | 31mm |
| Chamfer C | = | 1.3mm |
| Tooth Radius r3 | = | 13mm |
| Tooth Width b1 | = | 7.2mm |
| Taper Bush Series | = | < |
| a href=" | = | advanced_search_result.php?& |
| keywords=1008+taperlock" | = | > |
| 1008< | = | span style=" |
| color:blue" | = | > |
| Click Here< | = | /span> |
| < | = | /a> |
| = | Weight | |
| 0.252 kg | = | N/A |
