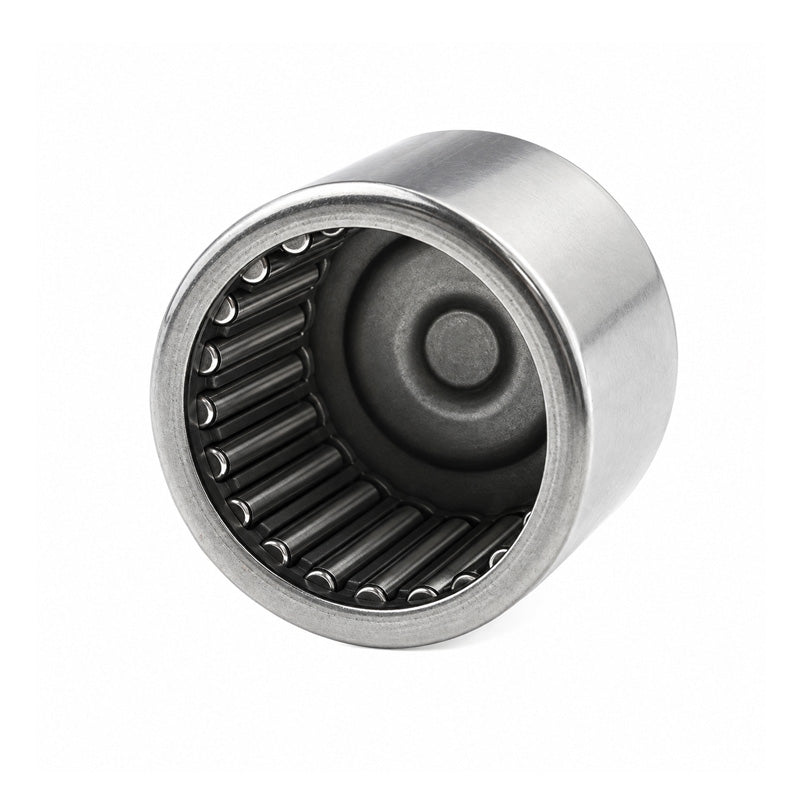

IKO TAM1512 Needle Roller Bearing Closed End Type 15x22x12mm

SKU: TAM.1512

IKO TAM1512 Needle Roller Bearing Closed End Type 15x22x12mm

€8,77 ex VAT
€8,77
ex VAT
In stock

Quantity Price Breaks

10 €7,81
19 €7,37
29 €7,28
39 €7,19
49 €7,10
74 €7,02
99 €6,58
199 €6,49
249 €6,40
499 €6,31
999 €6,14
Return policy
90-Days Free Returns
Learn More
Low cost shipping
International Delivery
Learn More
IKO TAM1512 Needle Roller Bearing Closed End Type 15x22x12mm
SKU: TAM.1512

IKO TAM1512 Needle Roller Bearing Closed End Type 15x22x12mm

€8,77 ex VAT
€8,77
ex VAT

Description

TAM Series Drawn Cup Needle Roller Bearings: As the name suggests are needle roller bearings with a deep drawn thin-walled outer ring with open ends. They are characterised by low sectional height and high load carrying ability. They are ideal where a very compact and economical bearing arrangement is required.
Benefits: Compact low cross section design, high load bearing, low cost and economical, available in sealed and unsealed options. Requires only a bored housing for deployment, the simplest of housing designs.

Technical

Fw = 15mm
D = 22mm
C = 12mm
Dynamic load = 7120 N
Static load = 8310 N
Inner ring = IRT 1012-1
Weight = 14.3 g
