SKU: TA.3525.Z

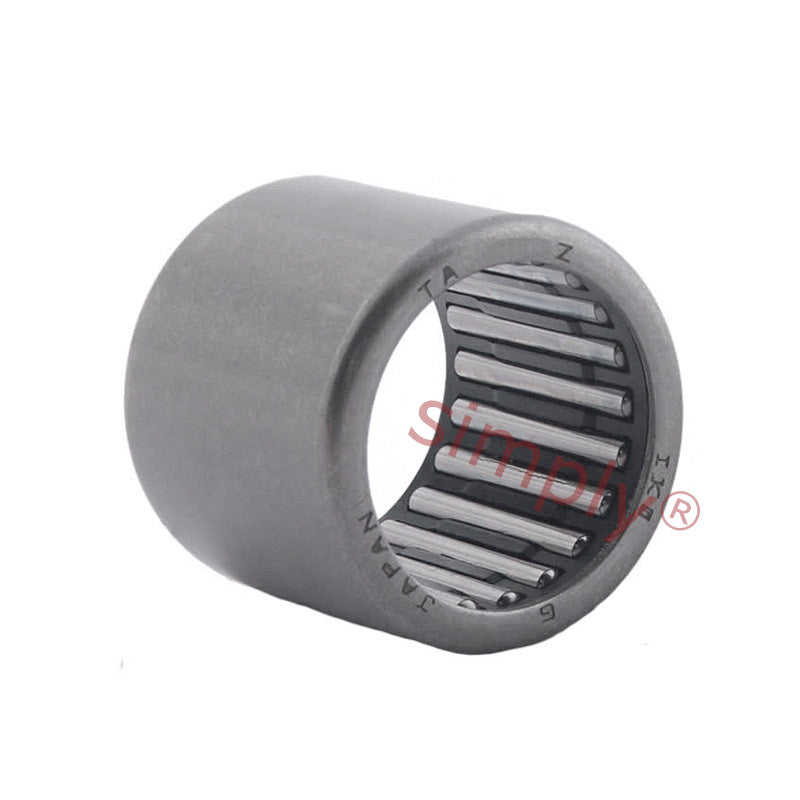

IKO TA3525Z Needle Roller Bearing Open End Type 35x45x25mm
- Regular price
- €16,19 ex VAT
- Sale price
- €16,19
- Regular price
-
ex VAT
In stock
Quantity Price Breaks
10
€14,41
19
€13,60
29
€13,44
39
€13,28
49
€13,11
74
€12,95
99
€12,14
199
€11,98
249
€11,82
499
€11,66
999
€11,33
Description
IKO TA Series Shell Type Drawn Cup Needle Roller Bearings: As the name suggests are needle roller bearings with deep drawn thin-walled outer rings with open ends. They are characterized by low sectional height and high load-carrying ability. They are ideal where a very compact and economical bearing arrangement is required
Benefits: Compact low cross-section design, high load bearing, low cost and economical, Requires only a bored housing for deployment, the simplest of housing designs.
Technical
| Fw | = | 35mm |
| D | = | 45mm |
| C | = | 25mm |
| Dynamic load | = | 34800 N |
| Static load | = | 59700 N |
| Inner race | = | IRT3025 |
| Weight | = | 78 g |
