SKU: TA.3013.Z

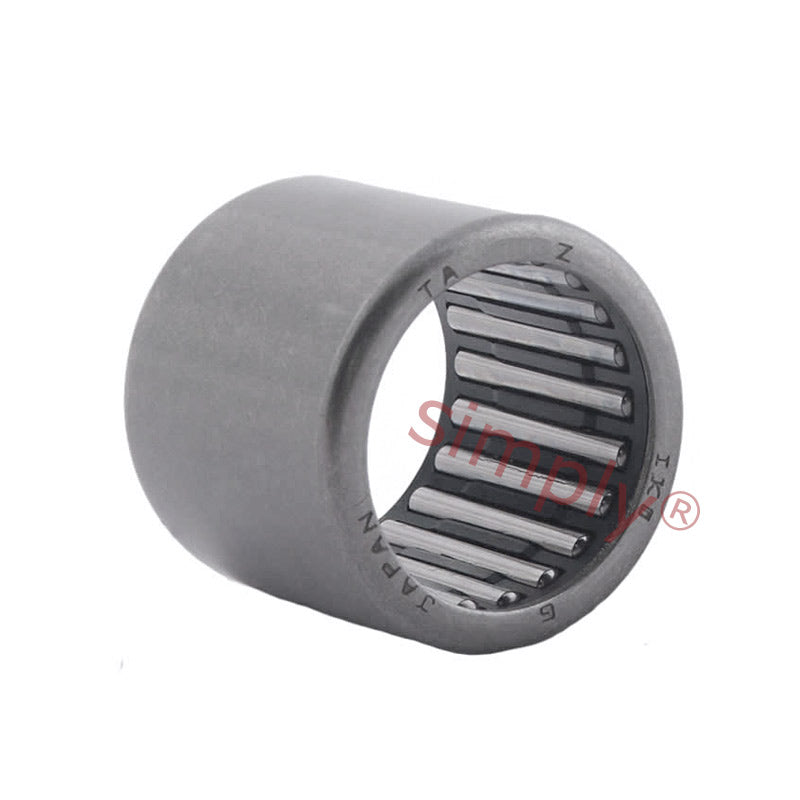

IKO TA3013Z Needle Roller Bearing Open End Type 30x40x13mm
- Regular price
- €15,37 ex VAT
- Sale price
- €15,37
- Regular price
-
In stock
Quantity Price Breaks
10
€13,68
19
€12,91
29
€12,76
39
€12,60
49
€12,45
74
€12,30
99
€11,53
199
€11,37
249
€11,22
499
€11,07
999
€10,76
SKU:
TA.3013.Z
IKO TA3013Z Needle Roller Bearing Open End Type 30x40x13mm
- Regular price
- €15,37 ex VAT
- Sale price
- €15,37
- Regular price
-
Description
IKO TA Series Shell Type Drawn Cup Needle Roller Bearings: As the name suggests are needle roller bearings with deep drawn thin-walled outer rings with open ends. They are characterized by low sectional height and high load-carrying ability. They are ideal where a very compact and economical bearing arrangement is required
Benefits: Compact low cross-section design, high load bearing, low cost and economical, Requires only a bored housing for deployment, the simplest of housing designs.

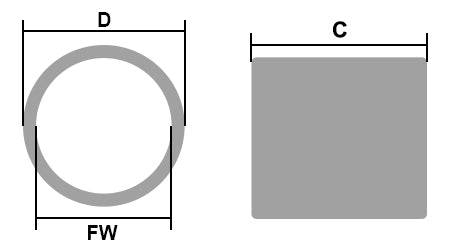

Technical
| Fw | = | 30mm |
| D | = | 40mm |
| C | = | 13mm |
| Dynamic load | = | 13500 N |
| Static load | = | 16800 N |
| Weight | = | 36.5 g |
