SKU: SYFJ50TF-MB

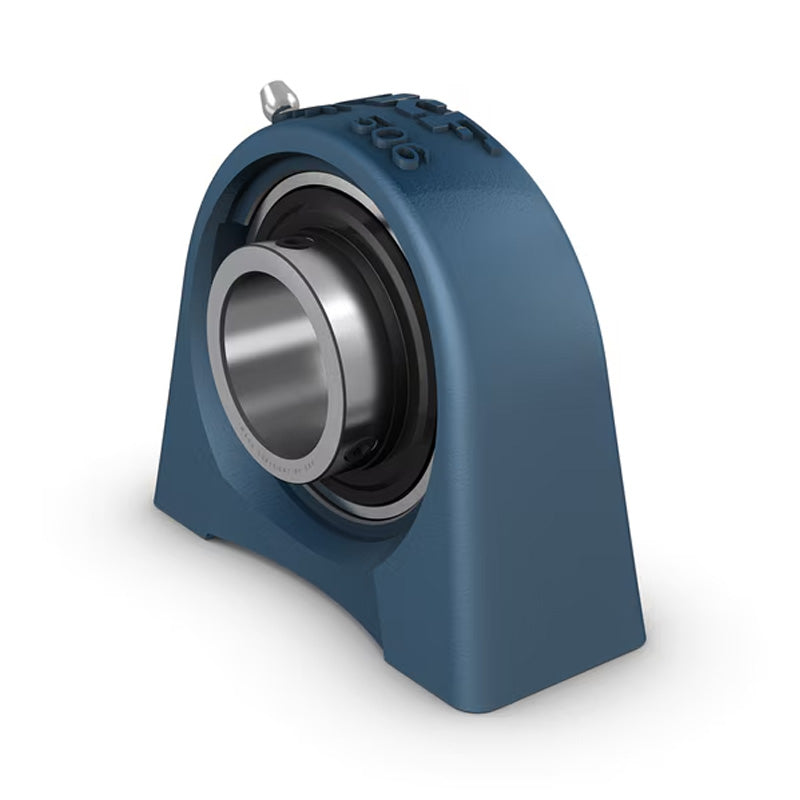

Major Branded SYFJ50TF Small Footprint Cast Iron Plummer Block with Grub Screw Insert 50mm
- Regular price
- €87,18 ex VAT
- Sale price
- €87,18
- Regular price
-
In stock
Quantity Price Breaks
10
€77,59
20
€73,23
30
€72,36
40
€71,49
50
€70,62
75
€69,74
100
€65,39
200
€64,51
250
€63,64
500
€62,77
1000
€61,03
SKU:
SYFJ50TF-MB
Major Branded SYFJ50TF Small Footprint Cast Iron Plummer Block with Grub Screw Insert 50mm
- Regular price
- €87,18 ex VAT
- Sale price
- €87,18
- Regular price
-
Description
|
Major Branded Y-bearing Plummer Block Units with a Cast Housing: These units contain a grey cast iron housing with a grease fitting in the housing which allows it to be re-lubricated. This makes them suitable for bearing arrangements that operate in high levels of contamination, high speeds, high temperatures or relatively heavy loads. The housing design has a shortened base that contains two threaded holes in the support base. Benefits: Grease fitting allows re-lubrication |

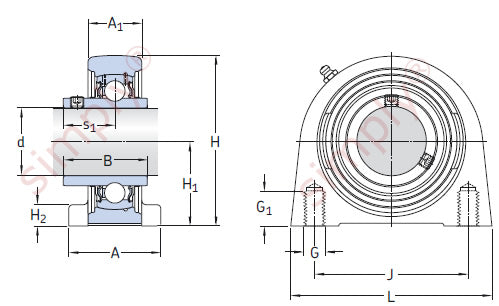

Technical
| d | = | 50mm |
| A | = | 60mm |
| A1 | = | 35.5mm |
| B | = | 51.6mm |
| H | = | 117mm |
| H1 | = | 57.2mm |
| H2 | = | 14mm |
| J | = | 94mm |
| L | = | 130mm |
| G | = | M16 |
| G1 | = | 25mm |
| s1 | = | 32.6mm |
| Static load Cr | = | 23.2 kN |
| Dynamic load Cor | = | 35.1 kN |
| Fatigue load limit Pu | = | 0.98 kN |
| Limiting speed | = | 4000 rpm |
| Weight | = | 2.3 kg |
| Housing | = | SYFJ510 |
| Insert | = | YAR210-2F |
