SKU: SUCP.PL.208

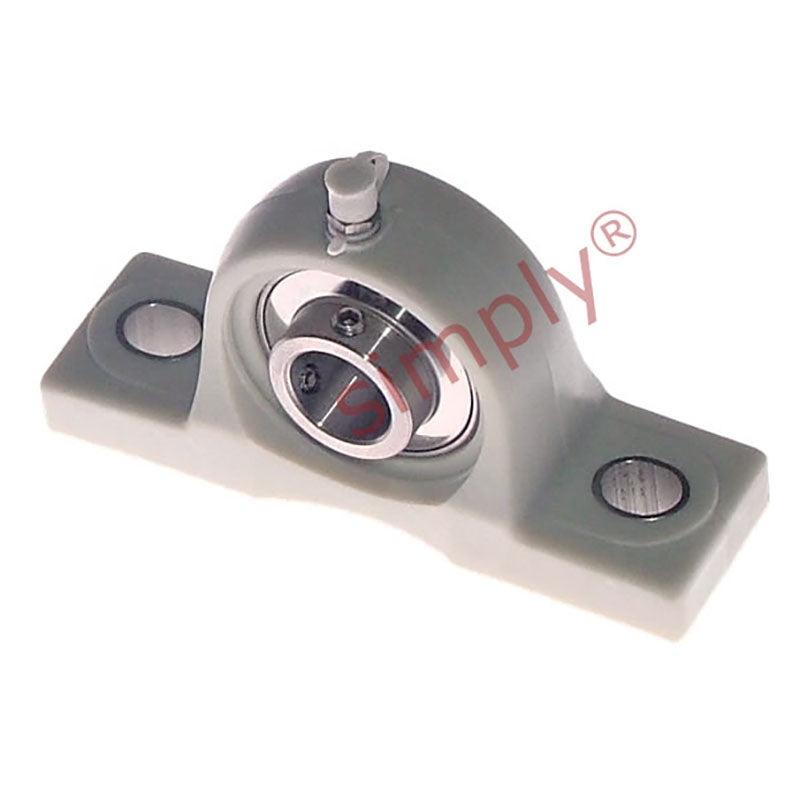

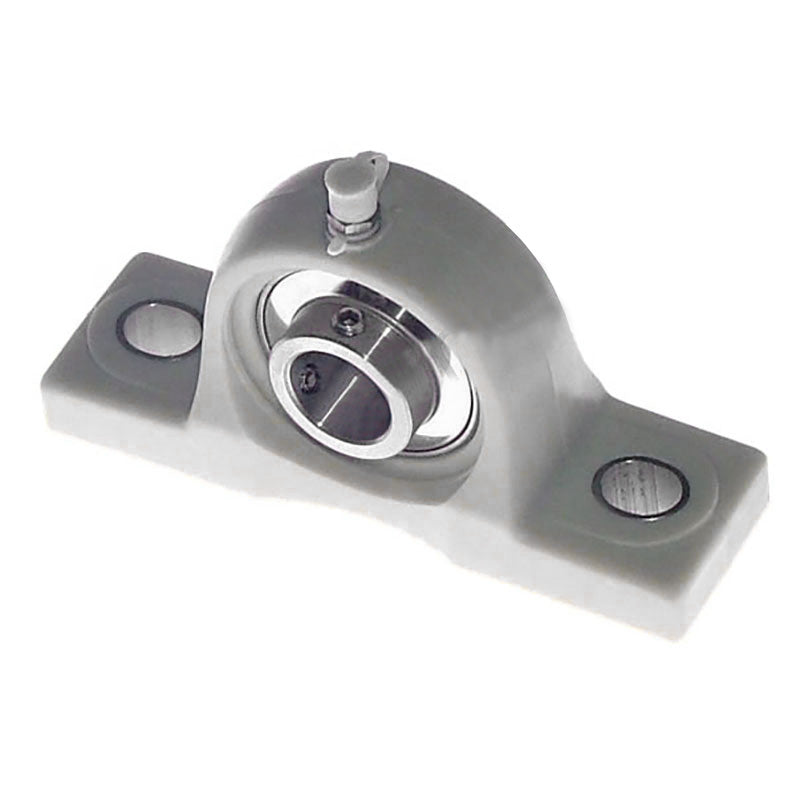

SUCPPL208 Metric Thermo Plastic Two Bolt Pillow / Plummer Block Housing with 40mm Bore Stainless Insert
- Regular price
- €96,54 ex VAT
- Sale price
- €96,54
- Regular price
-
In stock
Quantity Price Breaks
3
€85,92
4
€81,09
9
€80,13
19
€79,16
49
€78,20
99
€77,23
499
€72,41
999
€71,44
1999
€70,47
2999
€69,51
4999
€67,58
SKU:
SUCP.PL.208
SUCPPL208 Metric Thermo Plastic Two Bolt Pillow / Plummer Block Housing with 40mm Bore Stainless Insert
- Regular price
- €96,54 ex VAT
- Sale price
- €96,54
- Regular price
-
Description
|
UCP or NP Series Thermo-Plastic Plummer / Pillow Housings: Supplied with a fully sealed stainless steel bearing insert fitted in the plastic housing which has pre-fitted anti crush stainless steel inserts in the bolt holes and also includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing, food safe and approved Note: These bearings will eventually corrode in a marine environment and it is recommended to completely cover with grease or similar protection where practical. Colour may vary. |
Technical
| d | = | 40mm |
| h | = | 49.2mm |
| a | = | 184mm |
| e | = | 136mm |
| b | = | 54mm |
| s2 | = | 21mm |
| s1 | = | 17mm |
| g | = | 19mm |
| w | = | 98mm |
| B1 | = | 49.2mm |
| n | = | 19mm |
| Bolt | = | 14mm |
| Weight | = | 2 kg |
| Dynamic load | = | 2560 kgf |
| Static load | = | 1810 kgf |
| Temperature Range | = | -35 to 102 deg C |
| Rec max speed | = | 4000 rpm |
