SKU: SUCP.PL.206-20

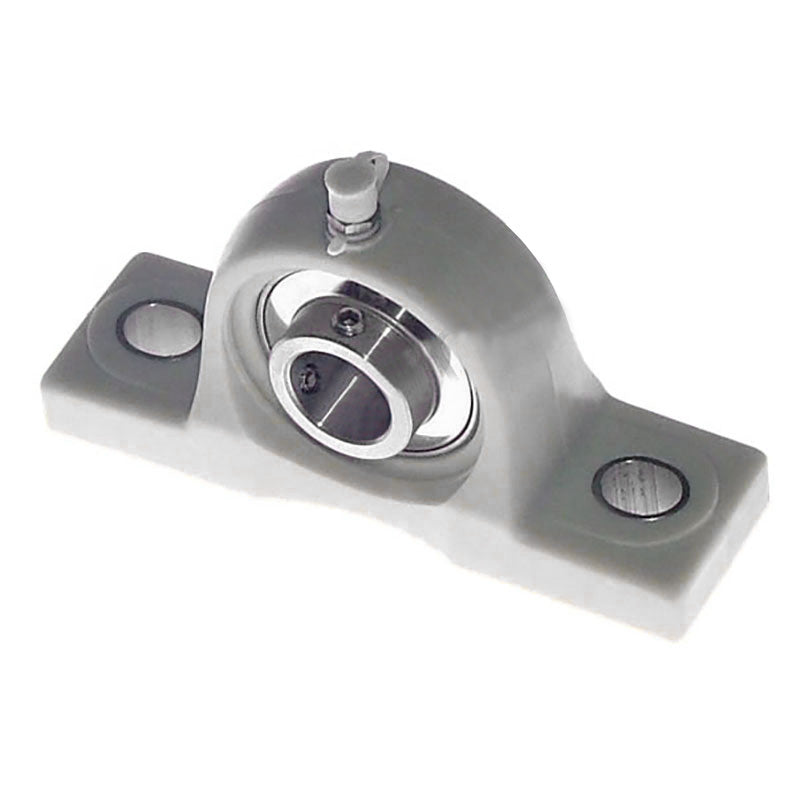

SUCPPL206-20 Imperial Thermo Plastic Two Bolt Pillow / Plummer Block Housing with 1-1/4 inch Bore Stainless Insert
- Regular price
- €25,17 ex VAT
- Sale price
- €25,17
- Regular price
-
In stock
Quantity Price Breaks
3
€22,40
4
€21,14
9
€20,89
19
€20,64
49
€20,39
99
€20,14
499
€18,88
999
€18,63
1999
€18,37
2999
€18,12
4999
€17,62
SKU:
SUCP.PL.206-20
SUCPPL206-20 Imperial Thermo Plastic Two Bolt Pillow / Plummer Block Housing with 1-1/4 inch Bore Stainless Insert
- Regular price
- €25,17 ex VAT
- Sale price
- €25,17
- Regular price
-
Description
|
UCP or NP Series Thermo-Plastic Plummer / Pillow Housings: Supplied with a fully sealed stainless steel bearing insert fitted in the plastic housing which has pre-fitted anti crush stainless steel inserts in the bolt holes and also includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing, food safe and approved Note: These bearings will eventually corrode in a marine environment and it is recommended to completely cover with grease or similar protection where practical. Colour may vary. |
Technical
| d | = | 1-1/4 inch |
| h | = | 42.9mm |
| a | = | 165mm |
| e | = | 121mm |
| b | = | 48mm |
| s2 | = | 21mm |
| s1 | = | 17mm |
| g | = | 18mm |
| w | = | 83mm |
| B1 | = | 38.1mm |
| n | = | 15.9mm |
| Bolt | = | 14mm |
| Weight | = | 0.79 kg |
| Dynamic load | = | 1520 kgf |
| Static load | = | 1020 kgf |
| Temperature Range | = | -35 to 102 deg C |
