SKU: SUCF.PL.204

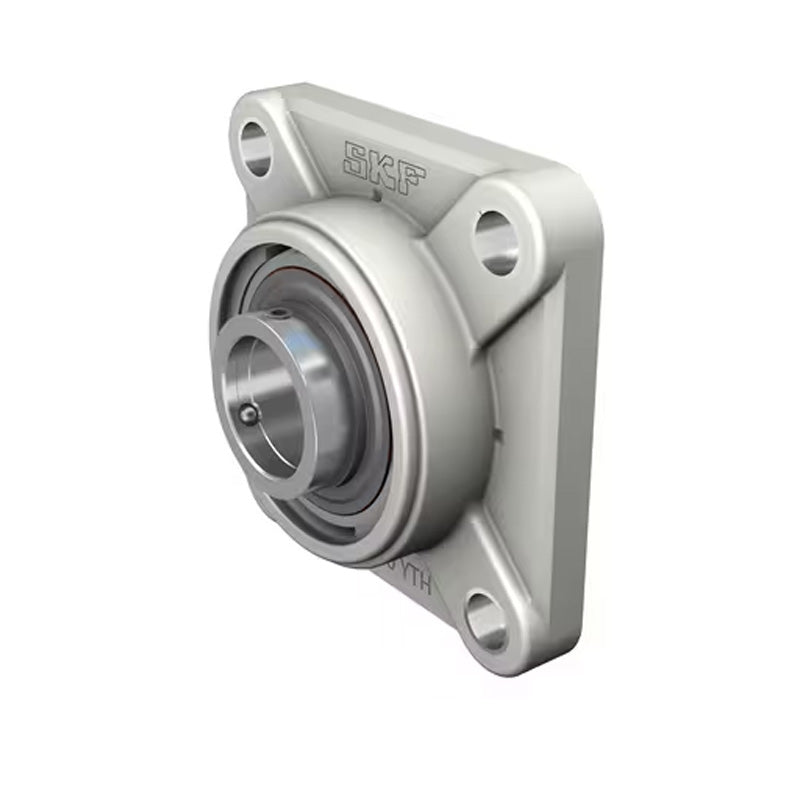

SUCFPL204 Metric Four Bolt Square Thermo Plastic Flange Housing with 20mm Bore Stainless Insert
- Regular price
- €42,02 ex VAT
- Sale price
- €42,02
- Regular price
-
In stock
Quantity Price Breaks
10+
€37,40
19+
€35,30
29+
€34,88
39+
€34,46
49+
€34,04
74+
€33,62
99+
€31,52
199+
€31,09
249+
€30,67
499+
€30,25
999+
€29,41
SKU:
SUCF.PL.204
SUCFPL204 Metric Four Bolt Square Thermo Plastic Flange Housing with 20mm Bore Stainless Insert
- Regular price
- €42,02 ex VAT
- Sale price
- €42,02
- Regular price
-
Description
|
UCFPL or PSF Series Thermo-Plastic 4 Bolt Square Housings: Supplied with a fully sealed stainless steel bearing insert fitted in the plastic housing which has pre-fitted anti crush stainless steel inserts in the bolt holes and also includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing, food safe and approved Note: These bearings will eventually corrode in a marine environment and it is recommended to completely cover with grease or similar protection where practical. Colour may vary. |
Technical
| d | = | 20mm |
| a | = | 86mm |
| e | = | 64mm |
| i | = | 15mm |
| g | = | 12mm |
| L | = | 25.6mm |
| S | = | 12mm |
| Z | = | 33.3mm |
| Bi | = | 31mm |
| n | = | 12.7mm |
| Bolt | = | 10mm |
| Weight | = | 0.63 kg |
| Dynamic load | = | 1000 kgf |
| Static load | = | 630 kgf |
| Temperature Range | = | -35 to 102 deg C |
