SKU: ST1.1/2DEC-RHP

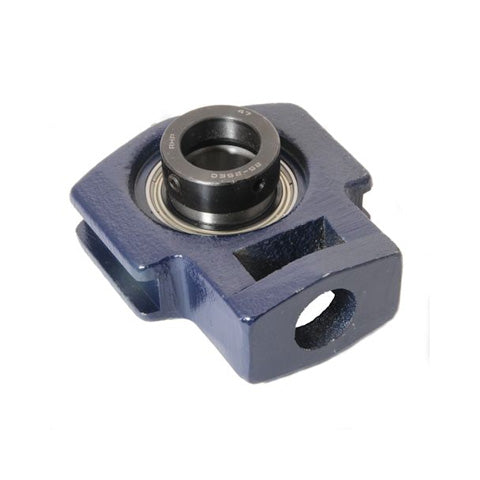

RHP ST1-1/2DEC Cast Iron Take Up Unit and 1-1/2 inch Bore Insert
RHP ST1-1/2DEC Cast Iron Take Up Unit and 1-1/2 inch Bore Insert
Regular price
€104,90
ex VAT
Regular price
Sale price
€104,90
ex VAT
In stock
Price Break
10+
€79,72
20+
€75,24
30+
€74,35
40+
€73,45
50+
€72,55
75+
€71,66
100+
€67,18
200+
€66,28
250+
€65,39
500+
€64,49
1000+
€62,70
Quantity
Couldn't load pickup availability
Share this product
Description
Description
|
RHP ST DEC Series Cast Iron Take Up Housing Units: Take up type cast iron bearing unit supplied with a full width bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has an eccentric collar and grub screw to allow tightening against the shaft after installation. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 38.1mm = 1.5 (1-1/2) inch
- Style:
- ST

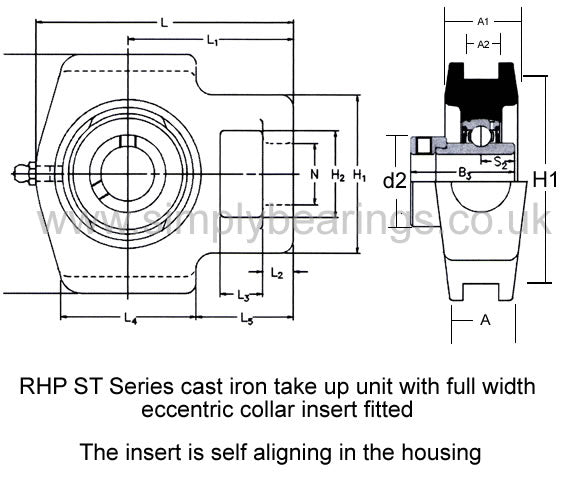

Technical
Technical
| Bore | 1-1/2 inch |
|---|---|
| L | 5.65 inch |
| L1 | 3.512 inch |
| L2 | 0.61 inch |
| L3 | 0.807 inch |
| L4 | 3.209 inch |
| L5 | 1.988 inch |
| H | 4.646 inch |
| H1 | 3.248 inch |
| H2 | 1.949 inch |
| H3 | 3.976 inch |
| N | 1.142 inch |
| A | 1.949 inch |
| A1 | 1.457 inch |
| A2 | 0.689 inch |
| B3 | 2.218 inch |
| s2 | 0.845 inch |
| d2 | 2.374 inch |
| Dynamic load | 32500 N |
| Static load | 19900 N |
| Rec max speed | 4000 rpm |
| Weight | 2.7 kg |
| Insert | <a href="advanced_search_result.php?keywords=1040-1-1/2DECG+insonly">1040-1-1/2DECG Click Here</a> |
| Casting group | 6 |
| Grease nipple thread | 1/4 UNF, 1/4 inch x 28 TPI |
