SKU: SSUCP.208

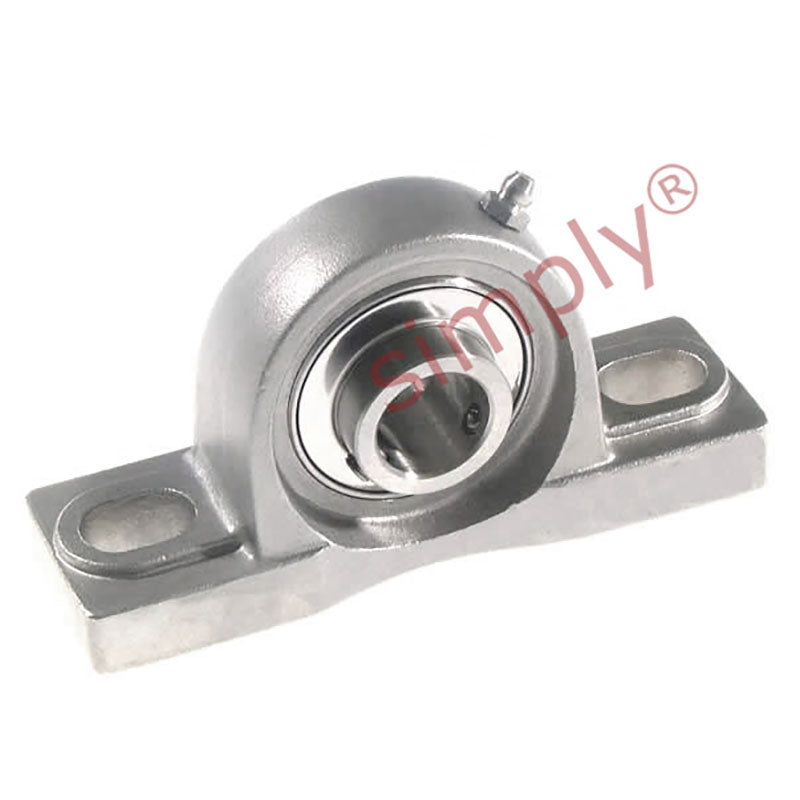

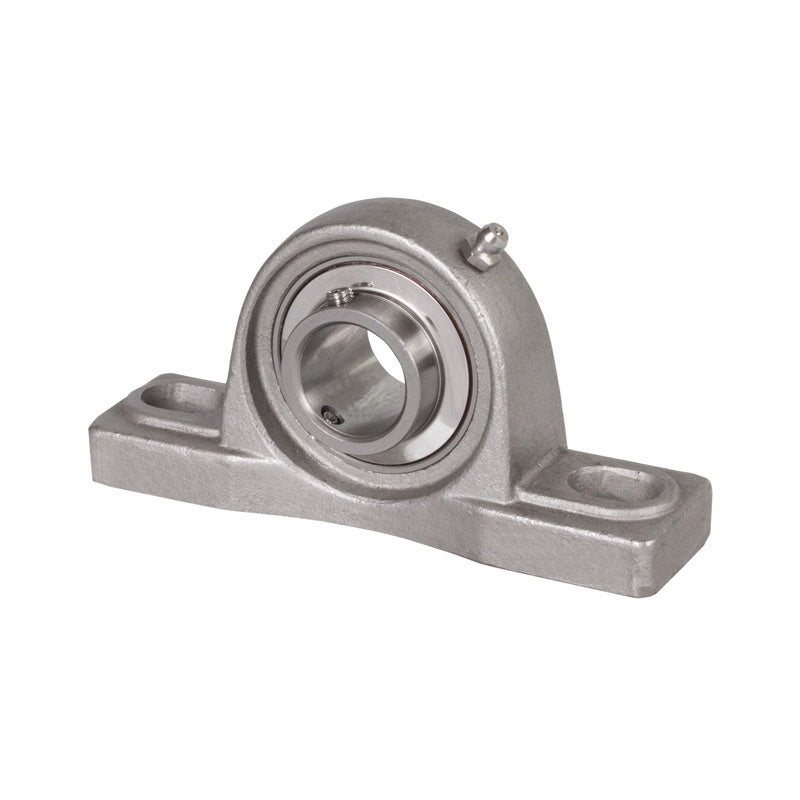

SSUCP208 Metric Stainless Steel Two Bolt Pillow / Plummer Block Housing with 40mm Bore Stainless Insert
- Regular price
- €139,69 ex VAT
- Sale price
- €139,69
- Regular price
-
In stock
Quantity Price Breaks
3
€124,32
4
€117,34
9
€115,94
19
€114,55
49
€113,15
99
€111,75
499
€104,77
999
€103,37
1999
€101,97
2999
€100,58
4999
€97,78
SKU:
SSUCP.208
SSUCP208 Metric Stainless Steel Two Bolt Pillow / Plummer Block Housing with 40mm Bore Stainless Insert
- Regular price
- €139,69 ex VAT
- Sale price
- €139,69
- Regular price
-
Description
|
UCP or NP Series Stainless Steel Plummer / Pillow Housings: Supplied with a fully sealed stainless steel bearing insert fitted in the stainless steel housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing, food safe and approved, exceptionally strong and durable Note: These bearings will eventually corrode in a marine environment and it is recommended to completely cover with grease or similar protection where practical. Due to the material requirements of these bearings to have a hard-wearing construction, they will be made of a harder form of Stainless Steel, such as 440 or similar, which will be attracted by magnets. Quotations for non-magnetic versions are available upon request. |
Technical
| d | = | 40mm |
| h | = | 49.2mm |
| a | = | 184mm |
| e | = | 136mm |
| b | = | 54mm |
| s2 | = | 21mm |
| s1 | = | 17mm |
| g | = | 19mm |
| w | = | 98mm |
| B1 | = | 49.2mm |
| n | = | 19mm |
| Bolt | = | 14mm |
| Weight | = | 2 kg |
| Dynamic load | = | 2560 kgf |
| Static load | = | 1810 kgf |
| Rec max speed | = | 4000 rpm |
