SKU: SSUCP.206-20

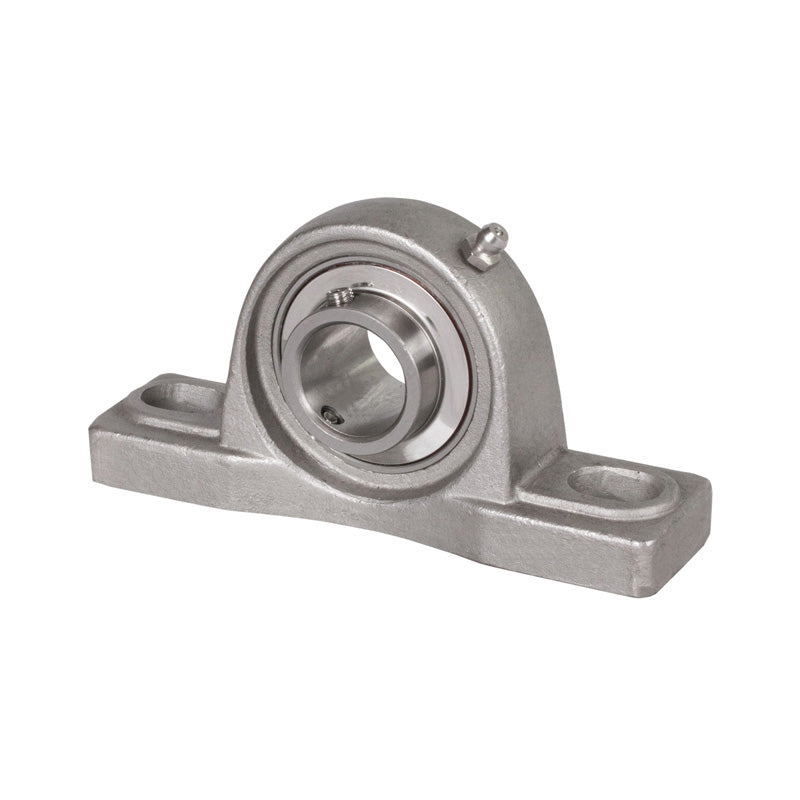

SSUCP206-20 Imperial Stainless Steel Two Bolt Pillow / Plummer Block Housing with 1-1/4 inch Bore Stainless Insert
- Regular price
- €67,29 ex VAT
- Sale price
- €67,29
- Regular price
-
In stock
Quantity Price Breaks
3
€59,89
4
€56,52
9
€55,85
19
€55,18
49
€54,50
99
€53,83
499
€50,47
999
€49,79
1999
€49,12
2999
€48,45
4999
€47,10
SKU:
SSUCP.206-20
SSUCP206-20 Imperial Stainless Steel Two Bolt Pillow / Plummer Block Housing with 1-1/4 inch Bore Stainless Insert
- Regular price
- €67,29 ex VAT
- Sale price
- €67,29
- Regular price
-
Description
|
UCP or NP Series Stainless Steel Plummer / Pillow Housings: Supplied with a fully sealed stainless steel bearing insert fitted in the stainless steel housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing, food safe and approved, exceptionally strong and durable Note: These bearings will eventually corrode in a marine environment and it is recommended to completely cover with grease or similar protection where practical. Due to the material requirements of these bearings to have a hard-wearing construction, they will be made of a harder form of Stainless Steel, such as 440 or similar, which will be attracted by magnets. Quotations for non-magnetic versions are available upon request. |
Technical
| d | = | 1-1/4 inch |
| h | = | 42.9mm |
| a | = | 165mm |
| e | = | 121mm |
| b | = | 48mm |
| s2 | = | 21mm |
| s1 | = | 17mm |
| g | = | 18mm |
| w | = | 83mm |
| B1 | = | 38.1mm |
| n | = | 15.9mm |
| Bolt | = | 14mm |
| Weight | = | 0.79 kg |
| Dynamic load | = | 1520 kgf |
| Static load | = | 1020 kgf |
