SKU: SSUCP.205-15

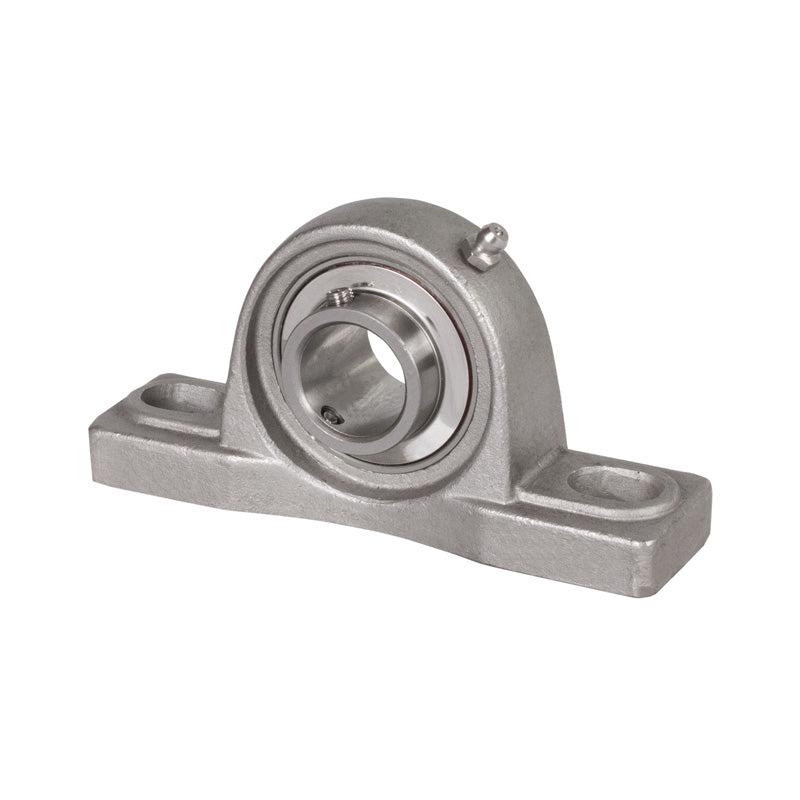

SSUCP205-15 Imperial Stainless Steel Two Bolt Pillow / Plummer Block Housing with 15/16 inch Bore Stainless Insert
- Regular price
- €61,01 ex VAT
- Sale price
- €61,01
- Regular price
-
Not in stock
Quantity Price Breaks
3
€54,30
4
€51,25
9
€50,64
19
€50,03
49
€49,42
99
€48,81
499
€45,76
999
€45,15
1999
€44,54
2999
€43,93
4999
€42,71
SKU:
SSUCP.205-15
SSUCP205-15 Imperial Stainless Steel Two Bolt Pillow / Plummer Block Housing with 15/16 inch Bore Stainless Insert
- Regular price
- €61,01 ex VAT
- Sale price
- €61,01
- Regular price
-
Description
|
UCP or NP Series Stainless Steel Plummer / Pillow Housings: Supplied with a fully sealed stainless steel bearing insert fitted in the stainless steel housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing, food safe and approved, exceptionally strong and durable Note: These bearings will eventually corrode in a marine environment and it is recommended to completely cover with grease or similar protection where practical. Due to the material requirements of these bearings to have a hard-wearing construction, they will be made of a harder form of Stainless Steel, such as 440 or similar, which will be attracted by magnets. Quotations for non-magnetic versions are available upon request. |
Technical
| d | = | 15/16 inch |
| h | = | 36.5mm |
| a | = | 140mm |
| e | = | 105mm |
| b | = | 38mm |
| s2 | = | 19mm |
| s1 | = | 13mm |
| g | = | 16mm |
| w | = | 70mm |
| B1 | = | 34mm |
| n | = | 14.3mm |
| Bolt | = | 10mm |
| Weight | = | 0.79 kg |
| Dynamic load | = | 1100 kgf |
| Static load | = | 710 kgf |
| Rec max speed | = | 6250 rpm |
