SKU: SSUCP.201

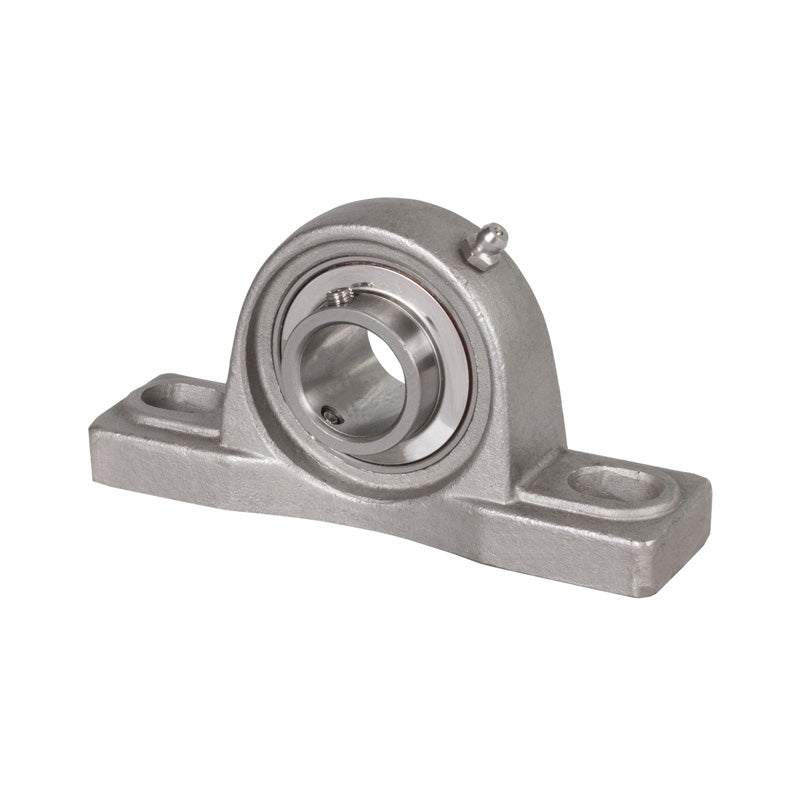

SSUCP201 Metric Stainless Steel Two Bolt Pillow / Plummer Block Housing with 12mm Bore Stainless Insert
- Regular price
- €45,99 ex VAT
- Sale price
- €45,99
- Regular price
-
In stock
Quantity Price Breaks
3
€40,93
4
€38,63
9
€38,17
19
€37,71
49
€37,25
99
€36,79
499
€34,49
999
€34,03
1999
€33,57
2999
€33,11
4999
€32,19
SKU:
SSUCP.201
SSUCP201 Metric Stainless Steel Two Bolt Pillow / Plummer Block Housing with 12mm Bore Stainless Insert
- Regular price
- €45,99 ex VAT
- Sale price
- €45,99
- Regular price
-
Description
|
UCP or NP Series Stainless Steel Plummer / Pillow Housings: Supplied with a fully sealed stainless steel bearing insert fitted in the stainless steel housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing, food safe and approved, exceptionally strong and durable Note: These bearings will eventually corrode in a marine environment and it is recommended to completely cover with grease or similar protection where practical. Due to the material requirements of these bearings to have a hard-wearing construction, they will be made of a harder form of Stainless Steel, such as 440 or similar, which will be attracted by magnets. Quotations for non-magnetic versions are available upon request. |
Technical
| d | = | 12mm |
| h | = | 33mm |
| a | = | 127mm |
| e | = | 96mm |
| b | = | 38mm |
| s2 | = | 19mm |
| s1 | = | 13mm |
| g | = | 15mm |
| w | = | 62mm |
| B1 | = | 31mm |
| n | = | 12.7mm |
| Bolt | = | 10mm |
| Weight | = | 0.63 kg |
| Dynamic load | = | 750 kgf |
| Static load | = | 450 kgf |
| Rec max speed | = | 8800 rpm |
