SKU: SSUCFL.206-18

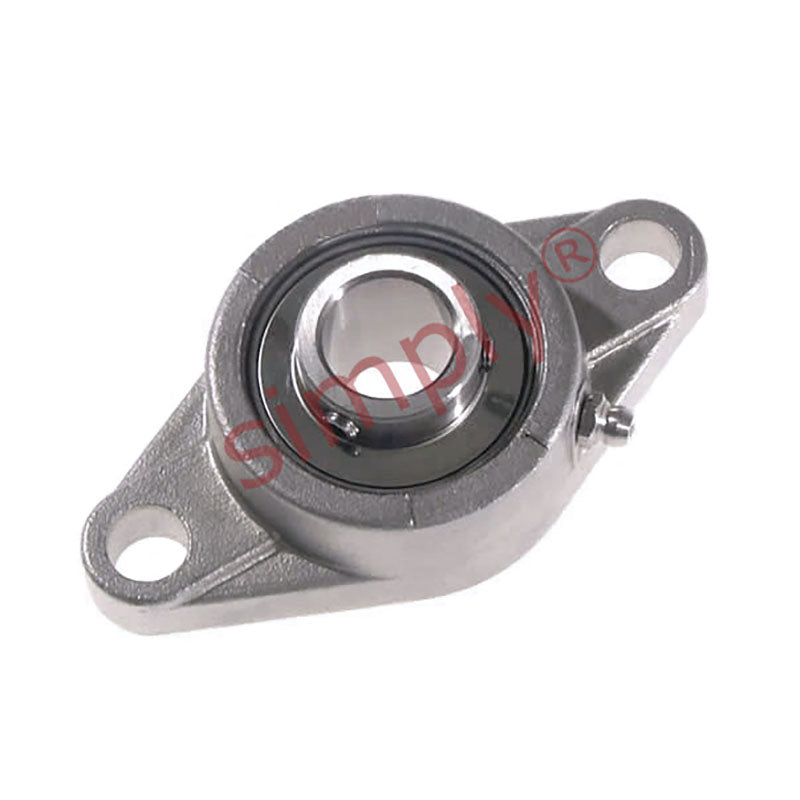

SSUCFL206-18 Imperial Two Bolt Oval Stainless Steel Flange Housing with 1-1/8 inch Bore Stainless Insert
- Regular price
- €67,04 ex VAT
- Sale price
- €67,04
- Regular price
-
In stock
Quantity Price Breaks
3
€59,67
4
€56,31
9
€55,64
19
€54,97
49
€54,30
99
€53,63
499
€50,28
999
€49,61
1999
€48,94
2999
€48,27
4999
€46,93
SKU:
SSUCFL.206-18
SSUCFL206-18 Imperial Two Bolt Oval Stainless Steel Flange Housing with 1-1/8 inch Bore Stainless Insert
- Regular price
- €67,04 ex VAT
- Sale price
- €67,04
- Regular price
-
Description
|
SSUCFL or SFT Series 2 Bolt Oval Stainless Steel Housings: Bearing unit supplied with a fully sealed stainless steel bearing insert fitted in the oval stainless housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing Note: These bearings will eventually corrode in a marine environment and it is recommended to completely cover with grease or similar protection where practical. Due to the material requirements of these bearings to have a hard-wearing construction, they will be made of a harder form of Stainless Steel, such as 440 or similar, which will be attracted by magnets. Quotations for non-magnetic versions are available upon request. |
Technical
| d | = | 1-1/8 inch |
| a | = | 148mm |
| e | = | 117mm |
| i | = | 18mm |
| g | = | 13mm |
| L | = | 31mm |
| S | = | 16mm |
| b | = | 80mm |
| Z | = | 40.2mm |
| Bi | = | 38.1mm |
| n | = | 15.9mm |
| Bolt | = | 14mm |
| Weight | = | 0.94 kg |
| Dynamic load | = | 1520 kgf |
| Static load | = | 1020 kgf |
| Rec max speed | = | 5300 rpm |
