SKU: SS.POS12.EU

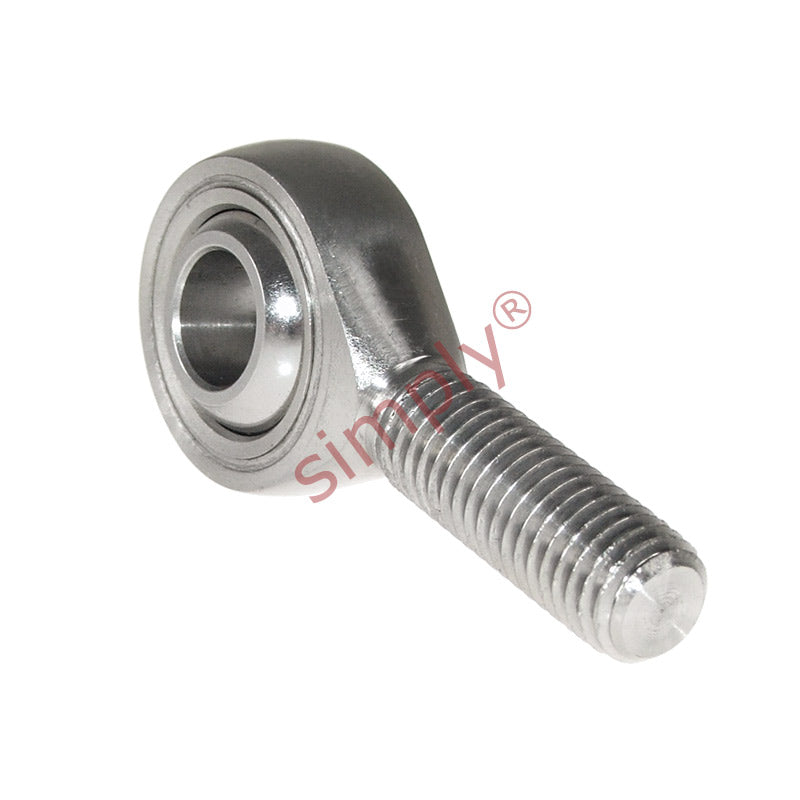

Budget SSPOS12 Right Hand Stainless Steel / PTFE Lined Plain Male Rod End 12mm Bore M12x1.75 Thread
- Regular price
- €34,05 ex VAT
- Sale price
- €34,05
- Regular price
-
In stock
Quantity Price Breaks
10
€30,30
19
€28,60
29
€28,26
39
€27,92
49
€27,58
74
€27,24
99
€25,54
199
€25,20
249
€24,86
499
€24,52
999
€23,84
SKU:
SS.POS12.EU
Budget SSPOS12 Right Hand Stainless Steel / PTFE Lined Plain Male Rod End 12mm Bore M12x1.75 Thread
- Regular price
- €34,05 ex VAT
- Sale price
- €34,05
- Regular price
-
Description
|
Stainless Steel Maintenance Free Male Rod End with PTFE Liner: Right hand thread male rod end consisting of AISI 420 Stainless Steel body with an AISI 440C Stainless Steel ball running in a PTFE maintenance free liner captive in an AISI 304 Stainless Steel ball mount. Benefits: Cost effective replacement bearing, sliding surfaces are steel against PTFE, maintenance free Note: These bearings will eventually corrode in a marine environment and it is recommended to completely cover with grease or similar protection where practical. Due to the material requirements of these bearings to have a hard-wearing construction, they will be made of a harder form of Stainless Steel, such as 440 or similar, which will be attracted by magnets. Quotations for non-magnetic versions are available upon request. |
Technical
| d | = | 12mm |
| B | = | 16mm |
| r1 | = | 0.6mm |
| C1 | = | 12mm |
| d1 max | = | 15.4mm |
| d2 | = | 30mm |
| d3 | = | M12x1.75 |
| h | = | 54mm |
| l1 | = | 33mm |
| l2 | = | 69mm |
| Ball diameter | = | 7/8 inch |
| Dynamic load Cr | = | 13.3 kN |
| Static load Cor | = | 17.3 kN |
| Max angle & | = | alpha |
| = | 13 | |
| Weight | = | 0.085 kg |
