SKU: SS.POS10.EU

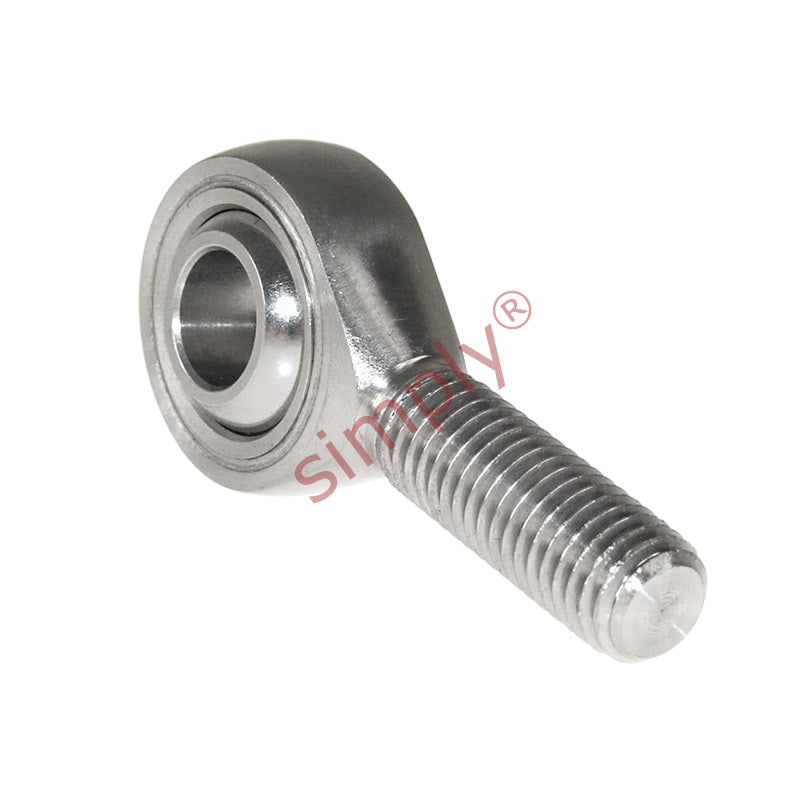

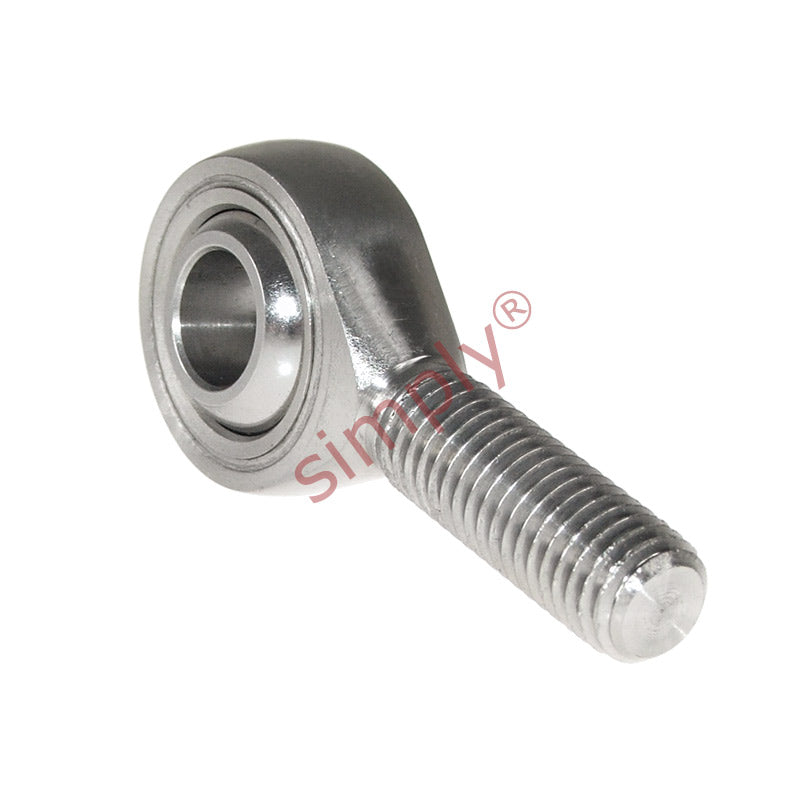

Budget SSPOS10 Right Hand Stainless Steel / PTFE Lined Plain Male Rod End 10mm Bore M10x1.5 Thread
- Regular price
- €25,91 ex VAT
- Sale price
- €25,91
- Regular price
-
In stock
Quantity Price Breaks
10
€23,06
19
€21,76
29
€21,51
39
€21,25
49
€20,99
74
€20,73
99
€19,43
199
€19,17
249
€18,91
499
€18,66
999
€18,14
SKU:
SS.POS10.EU
Budget SSPOS10 Right Hand Stainless Steel / PTFE Lined Plain Male Rod End 10mm Bore M10x1.5 Thread
- Regular price
- €25,91 ex VAT
- Sale price
- €25,91
- Regular price
-
Description
|
Stainless Steel Maintenance Free Male Rod End with PTFE Liner: Right hand thread male rod end consisting of AISI 420 Stainless Steel body with an AISI 440C Stainless Steel ball running in a PTFE maintenance free liner captive in an AISI 304 Stainless Steel ball mount. Benefits: Cost effective replacement bearing, sliding surfaces are steel against PTFE, maintenance free Note: These bearings will eventually corrode in a marine environment and it is recommended to completely cover with grease or similar protection where practical. Due to the material requirements of these bearings to have a hard-wearing construction, they will be made of a harder form of Stainless Steel, such as 440 or similar, which will be attracted by magnets. Quotations for non-magnetic versions are available upon request. |
Technical
| d | = | 10mm |
| B | = | 14mm |
| r1 | = | 0.6mm |
| C1 | = | 10.5mm |
| d1 max | = | 12.9mm |
| d2 | = | 26mm |
| d3 | = | M10x1.5 |
| h | = | 48mm |
| l1 | = | 29mm |
| l2 | = | 61mm |
| Ball diameter | = | 3/4 inch |
| Dynamic load Cr | = | 10 kN |
| Static load Cor | = | 13.6 kN |
| Max angle & | = | alpha |
| = | 13 | |
| Weight | = | 0.054 kg |
