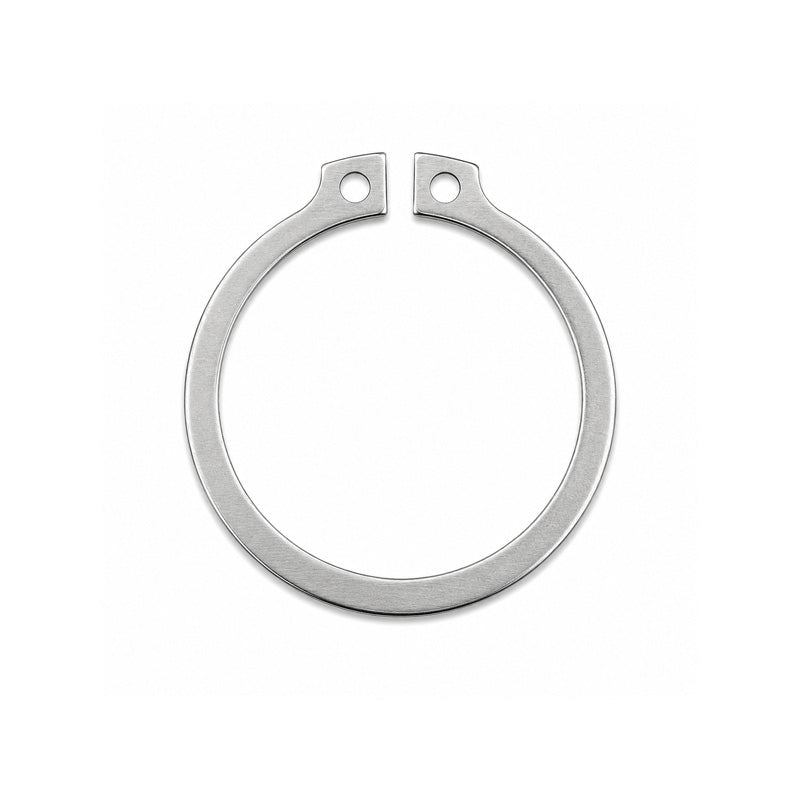

• Stainless External Circlip for 44mm Shaft Diameter Un-Sprung Dia 40.5mm
1 1

SKU: SS.D1400-044

Stainless External Circlip for 44mm Shaft Diameter Un-Sprung Dia 40.5mm

Stainless External Circlip for 44mm Shaft Diameter Un-Sprung Dia 40.5mm
€3,07 ex VAT
€3,07 ex VAT
Sale Sold out

Equivalent to: SSD1400-044

In stock

Price Break
5+ €1,83
10+ €1,57
20+ €1,44
50+ €1,31
100+ €1,05
500+ €0,92
1000+ €0,79

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Stainless Steel External Circlips: The most common form of axially fitted circlips for shafts with grooves.
The circlip has a large free diameter and gap width, consequently it fits more tightly into the groove and provides higher and more uniform thrust load capacity. Lugs with holes are provided for rapid fitting or removal with circlip pliers.
Material: Stainless Spring Steel
Benefits: Cost effective replacement, durable, removable, corrosion resistant
Brand / Quality:
Simply Circlips - Economy Quality
Inside Diameter:
40.5mm
Material:
Stainless Steel
Shaft Size:
44mm
Thickness:
1.75mm
Groove Diameter:
41.5mm
Technical
--- Clip Dimensions
Shaft Size 44mm
Thickness s 1.75mm
Thickness tolerance -0.06mm
Unstressed diameter d3 40.5mm
Unstressed diameter tolerance +0.39/-0.90mm
Lug a 6.6mm
Beam b 4.6mm
d5 2.5mm
Weight 7 g
--- Groove Details
Groove diameter 41.5mm
Groove tolerance -0.25mm
Minimum groove width 1.85mm
Groove depth 1.25mm
