SKU: SMF.117

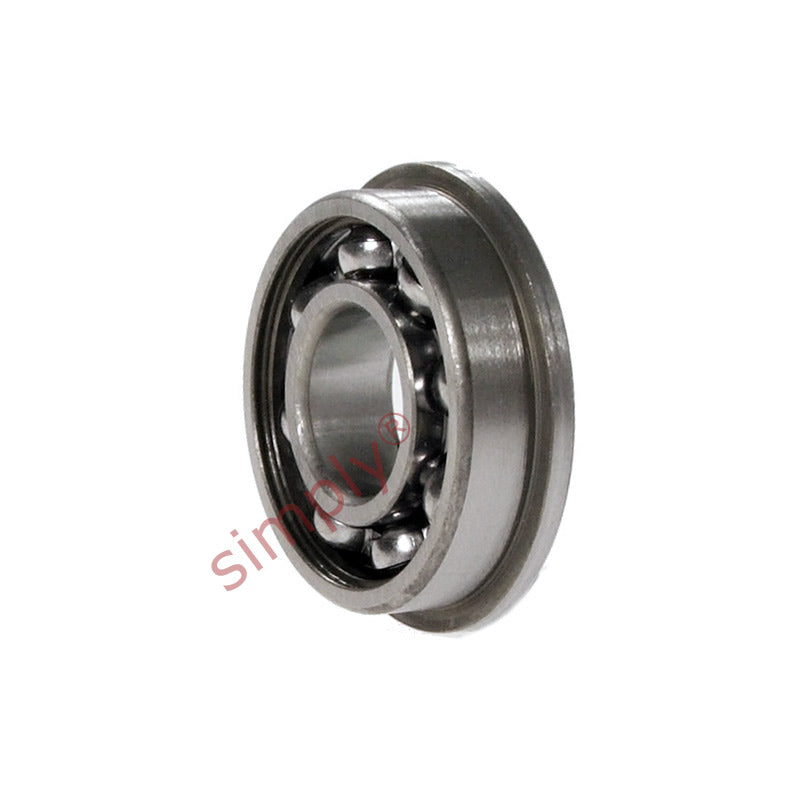

SMF117 Budget Stainless Steel Open Flanged Deep Groove Ball Bearing 7x11x2.5mm
In stock
Price Break
Couldn't load pickup availability
Share this product
Description
Stainless Steel Flanged Deep Groove Ball Bearings: Manufactured in stainless steel to the same principal sizes as standard chrome steel bearings. They have an additional flange to allow fitting into housings flush against the shoulder of the flange. They are often used on steel tracks as guides and supports
Benefits: Cost effective replacement bearing, Flanged design, Higher corrosion resistance
Note: These bearings will eventually corrode in a marine environment and it is recommended to completely cover with grease or similar protection where practical. Due to the material requirements of these bearings to have a hard-wearing construction, they will be made of a harder form of Stainless Steel, such as 440 or similar, which will be attracted by magnets.
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 7mm
- Outside Diameter:
- 11mm
- Width:
- 2.5mm
- Seals / Shields:
- None
- Clearance:
- * Standard

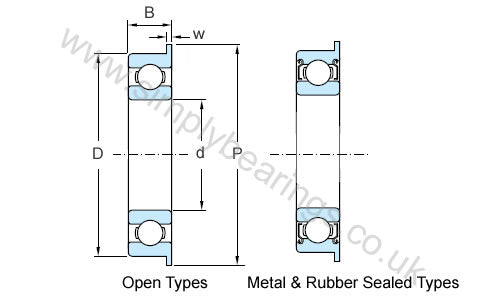

Technical
| Inside diameter d | 7mm |
|---|---|
| Outside diameter D | 11mm |
| Bearing width B | 2.5mm |
| Flange diameter P | 12.2mm |
| Flange width w | 0.6mm |
