SKU: SLC25A-RHP

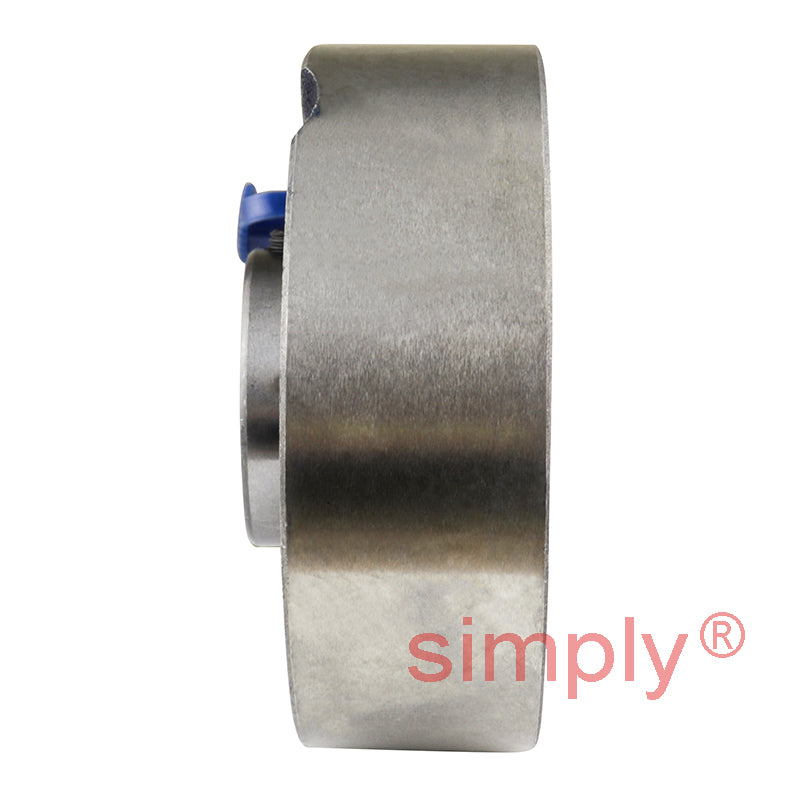

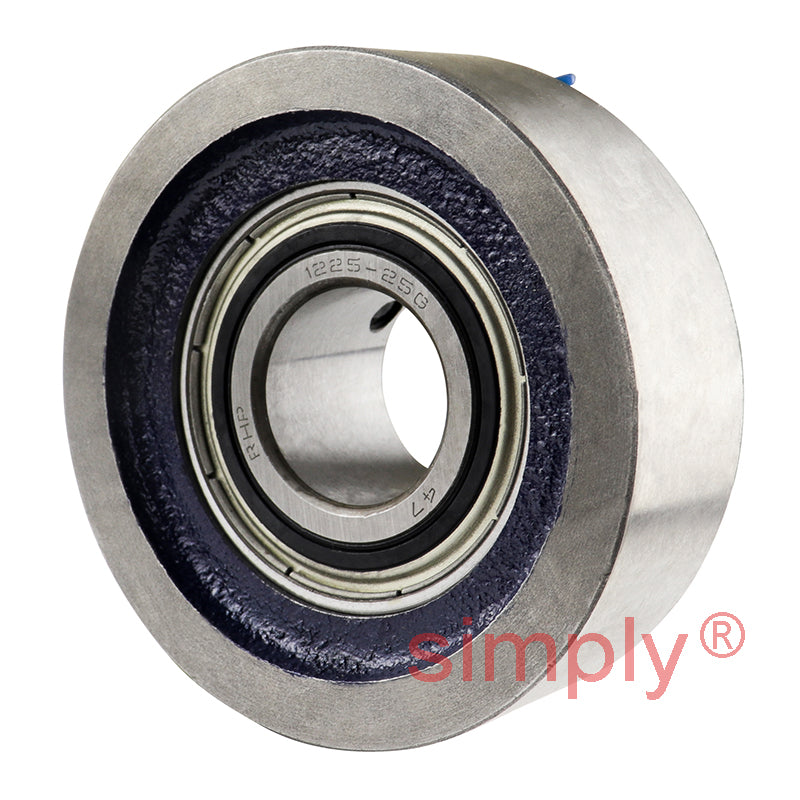

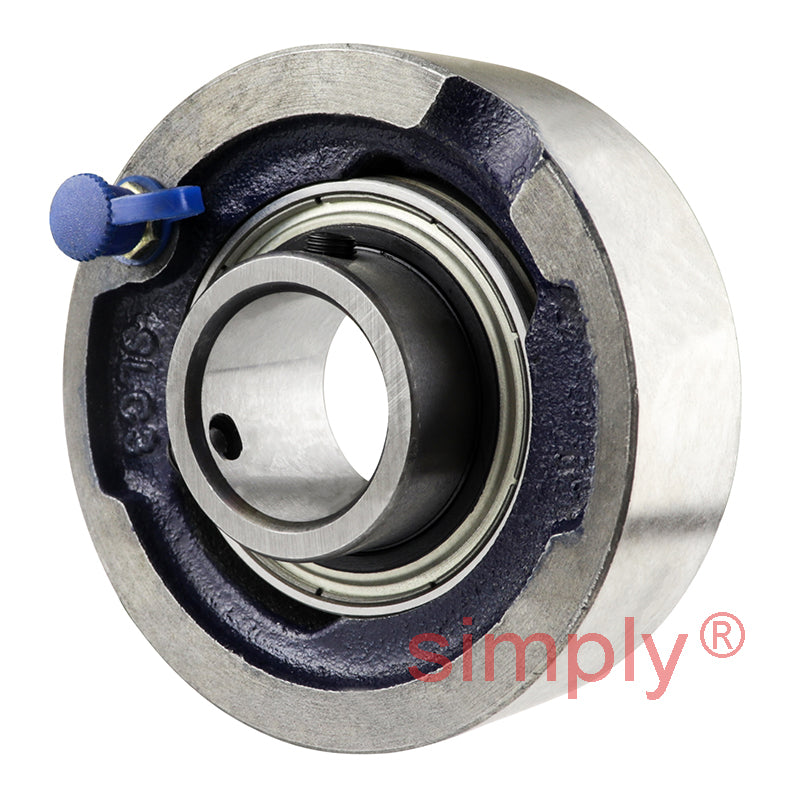

RHP SLC25A Cast Iron Cartridge Unit with 25mm Bore Insert 79.4mm Outside Diameter
RHP SLC25A Cast Iron Cartridge Unit with 25mm Bore Insert 79.4mm Outside Diameter
Regular price
€44,61
ex VAT
Regular price
Sale price
€44,61
ex VAT
In stock
Price Break
10+
€33,90
20+
€31,99
30+
€31,61
40+
€31,23
50+
€30,85
75+
€30,47
100+
€28,56
200+
€28,18
250+
€27,80
500+
€27,42
1000+
€26,66
Quantity
Couldn't load pickup availability
Share this product
Description
Description
|
RHP SLC A Series Cartridge Bearing Units: Cast iron cartridge bearing unit supplied with a flat back bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation. Cartridge units allow a self aligning bearing inserts to be used where a fixed bearing would normally be used. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 25mm
- Outside Diameter:
- 79.4mm
- Style:
- SLC

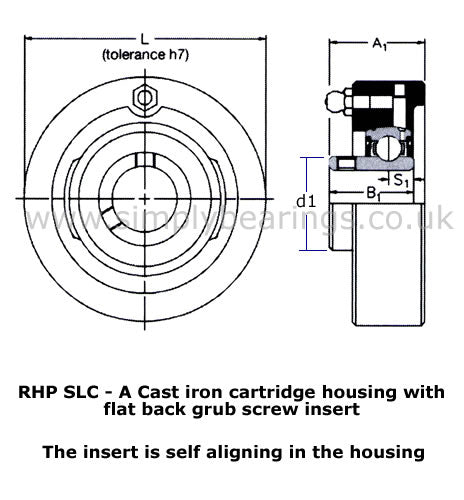

Technical
Technical
| Bore | 25mm |
|---|---|
| L | 79.4mm |
| A | 26.19mm |
| A1 | 32.94mm |
| A2 | 36.52mm |
| A3 | 40.06mm |
| B | 34.11mm |
| B1 | 27.35mm |
| B2 | 30.92mm |
| B3 | 44.4mm |
| s | 14.32mm |
| s1 | 7.56mm |
| s2 | 17.49mm |
| d1 | 34.01mm |
| d2 | 38.1mm |
| Dynamic load Cr | 14000 N |
| Static load Cor | 7880 N |
| Rec max speed | 6250 rpm |
| Weight | 0.8 kg |
| Insert | <a href="advanced_search_result.php?keywords=1225-25AG+insonly">1225-25AG Click Here</a> |
| Casting group | 3 |
| Grease nipple thread | 1/4 UNF, 1/4 inch x 28 TPI |
