SKU: SL50A-RHP

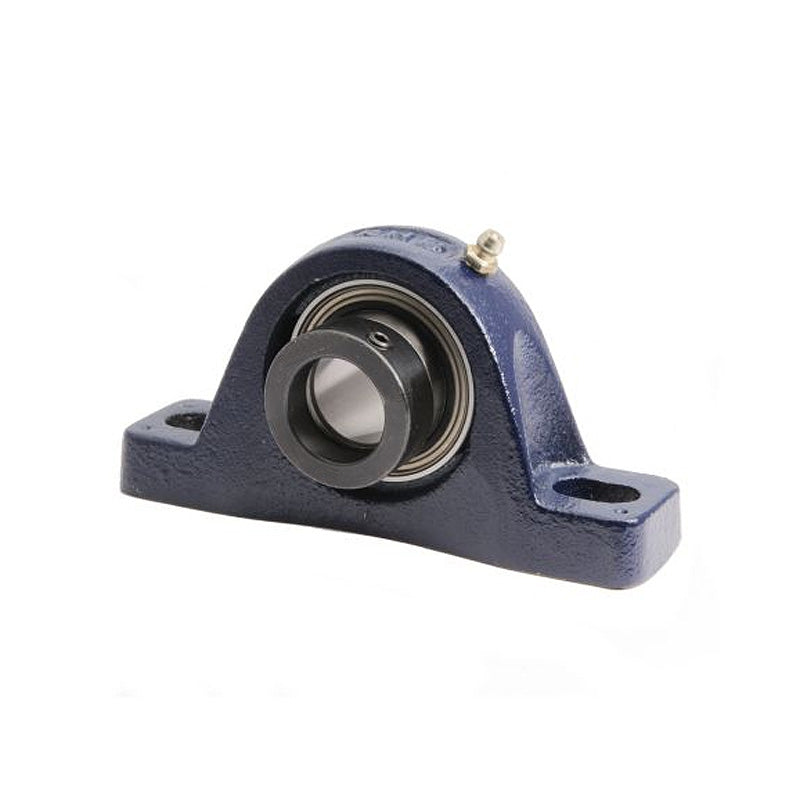

RHP SL50A Two Bolt Cast Iron Pillow Block and 50mm Bore Grub Screw Flat Back Insert
RHP SL50A Two Bolt Cast Iron Pillow Block and 50mm Bore Grub Screw Flat Back Insert
Regular price
€92,60
ex VAT
Regular price
Sale price
€92,60
ex VAT
In stock
Price Break
10+
€70,37
20+
€66,42
30+
€65,63
40+
€64,84
50+
€64,05
75+
€63,25
100+
€59,30
200+
€58,51
250+
€57,72
500+
€56,93
1000+
€55,35
Quantity
Couldn't load pickup availability
Share this product
Description
Description
|
RHP SL-A Series Plummer / Pillow Housings: Supplied with a flat back sealed bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 50mm
- Style:
- SL
- Bolt Hole Centres:
- 151-177mm
Technical
Technical
| Bore | 50mm |
|---|---|
| L | 214mm |
| H | 55.55mm |
| H1 | 19.3mm |
| H2 | 114mm |
| J max | 177mm |
| J min | 151mm |
| G | 12mm |
| A | 55mm |
| A1 | 36mm |
| B1 | 43.54mm |
| s1 | 11.05mm |
| d1 | 62.2mm |
| Dynamic load Cr | 35000 N |
| Static load Cor | 23200 N |
| Rec max speed | 3400 rpm |
| Insert | <a href="advanced_search_result.php?keywords=1250-50G+insonly">1250-50G Click Here</a> |
| Casting group | 8 |
| Grease nipple thread | 1/4 UNF, 1/4 inch x 28 TPI |
