SKU: SL2.7/16-RHP

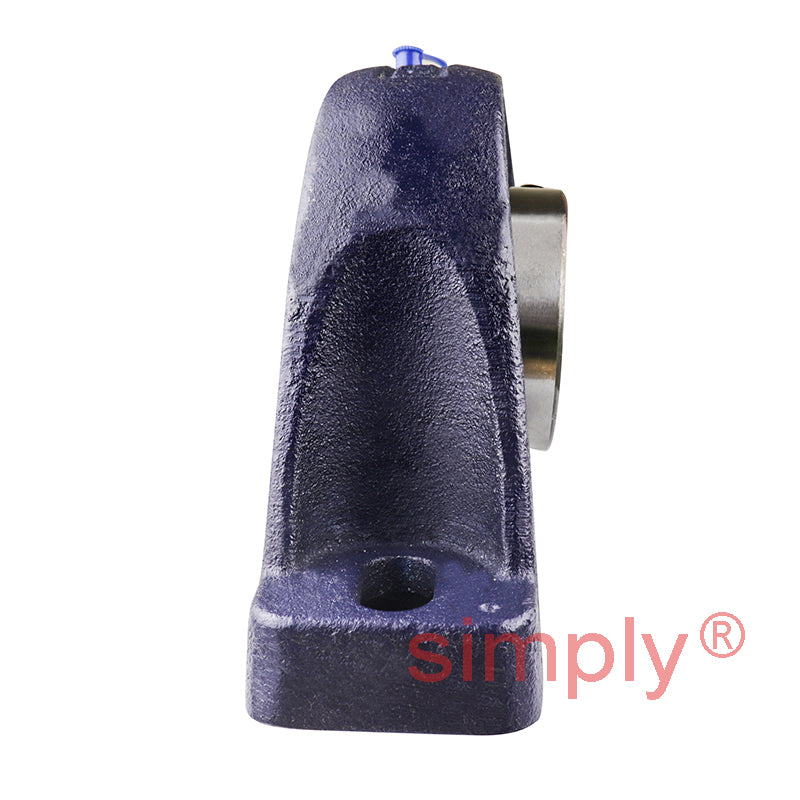

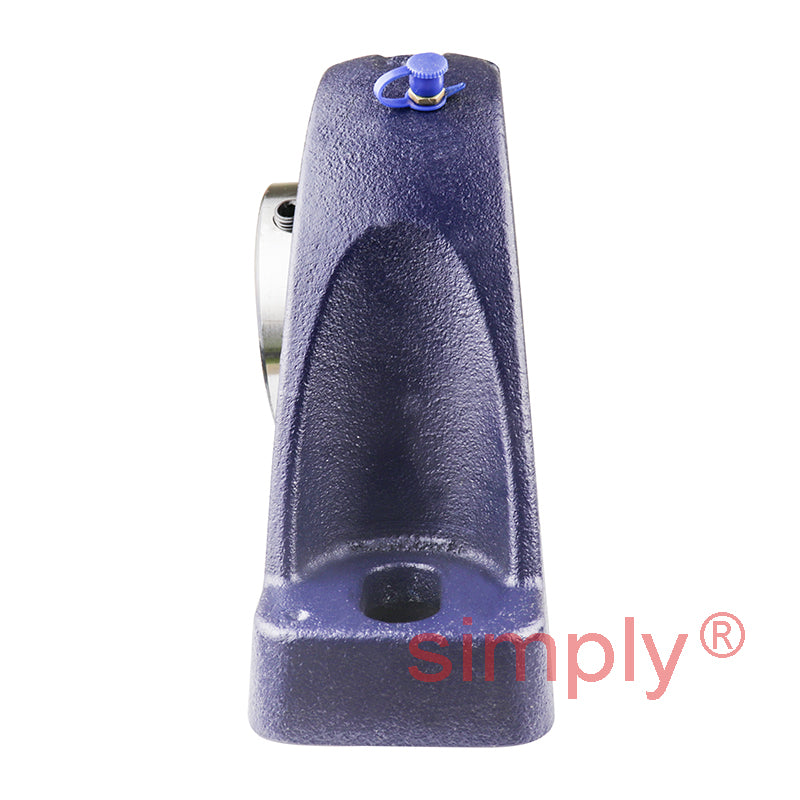

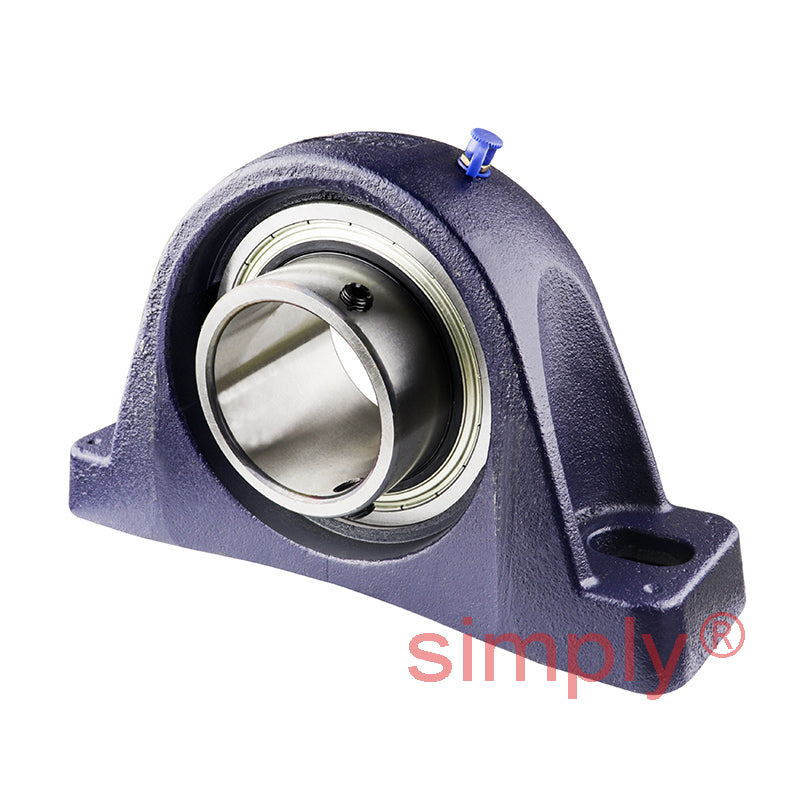

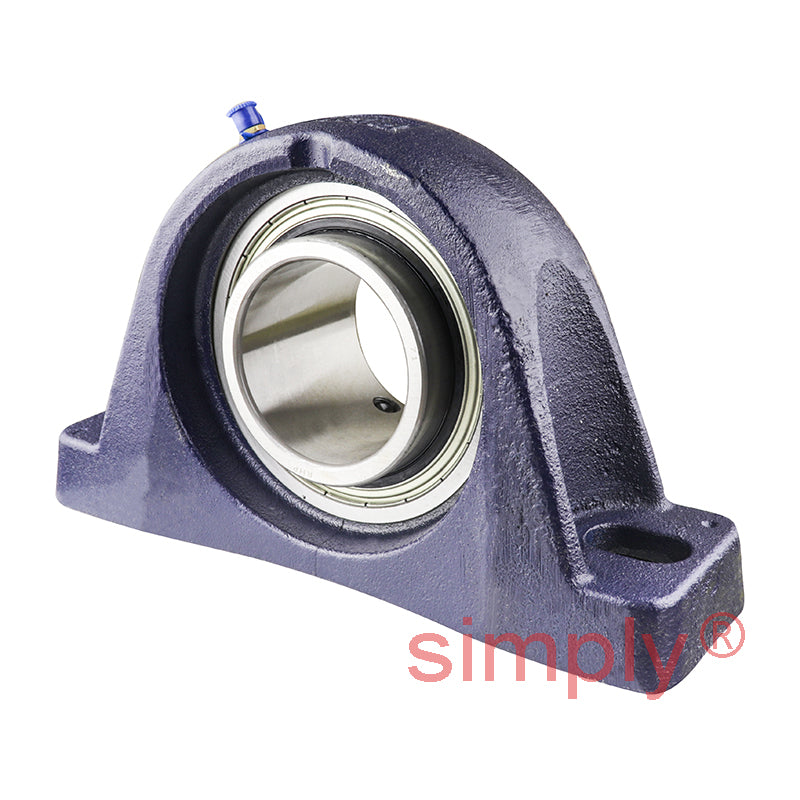

RHP SL2-7/16 Two Bolt Cast Iron Pillow Block and 2-7/16 Bore Grub Screw Full Width Insert
RHP SL2-7/16 Two Bolt Cast Iron Pillow Block and 2-7/16 Bore Grub Screw Full Width Insert
Regular price
€156,36
ex VAT
Regular price
Sale price
€156,36
ex VAT
In stock
Price Break
10+
€118,82
20+
€112,15
30+
€110,81
40+
€109,48
50+
€108,14
75+
€106,81
100+
€100,13
200+
€98,79
250+
€97,46
500+
€96,12
1000+
€93,45
Quantity
Couldn't load pickup availability
Share this product
Description
Description
|
RHP SL Series Plummer / Pillow Housings: Supplied with a sealed full width bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 61.91mm = 2.437 (2-7/16) inch
- Style:
- SL
- Bolt Hole Centres:
- 7.189-8.063 inch
Technical
Technical
| Bore | 2-7/16 inch |
|---|---|
| L | 9.803 inch |
| H | 2.687 inch |
| H1 | 1.126 inch |
| H2 | 5.437 inch |
| J max | 8.063 inch |
| J min | 7.189 inch |
| G | 0.625 inch |
| A | 2.748 inch |
| A1 | 1.811 inch |
| B | 2.562 inch |
| s | 1.002 inch |
| s1 | - inch |
| d1 | 2.966 inch |
| Dynamic load Cr | 48000 N |
| Static load Cor | 33000 N |
| Rec max speed | 2800 rpm |
| Insert | <a href="advanced_search_result.php?keywords=1060-2-7/16G+insonly">1060-2-7/16G Click Here</a> |
| Casting group | 10 |
| Grease nipple thread | 1/4 UNF, 1/4 inch x 28 TPI |
