SKU: SL2.1/2-RHP
RHP SL2-1/2 Two Bolt Cast Iron Pillow Block and 2-1/2 Bore Grub Screw Full Width Insert
RHP SL2-1/2 Two Bolt Cast Iron Pillow Block and 2-1/2 Bore Grub Screw Full Width Insert
Regular price
€262,98
ex VAT
Regular price
Sale price
€262,98
ex VAT
In stock
Price Break
10+
€199,85
20+
€188,62
30+
€186,37
40+
€184,13
50+
€181,88
75+
€179,64
100+
€168,41
200+
€166,16
250+
€163,92
500+
€161,67
1000+
€157,18
Quantity
Couldn't load pickup availability
Share this product
Description
Description
|
RHP SL Series Plummer / Pillow Housings: Supplied with a sealed full width bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 63.5mm = 2.5 (2-1/2) inch
- Style:
- SL
- Bolt Hole Centres:
- 7.189-8.063 inch
Technical
Technical

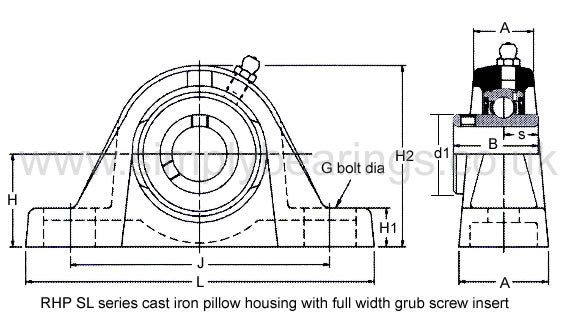

| Bore | 2-1/2 inch |
|---|---|
| L | 9.748 inch |
| H | 2.687 inch |
| H1 | 1.126 inch |
| H2 | 5.626 inch |
| J max | 8.063 inch |
| J min | 7.189 inch |
| G | 0.625 inch |
| A | 2.748 inch |
| A1 | 1.811 inch |
| B | 2.562 inch |
| s | 1.002 inch |
| s1 | - inch |
| d1 | 3.244 inch |
| Dynamic load Cr | 57500 N |
| Static load Cor | 40000 N |
| Rec max speed | 2600 rpm |
| Insert | <a href="advanced_search_result.php?keywords=1065-2-1/2G+insonly">1065-2-1/2G Click Here</a> |
| Casting group | 10/65 |
| Grease nipple thread | 1/4 UNF, 1/4 inch x 28 TPI |
