SKU: SL196_NAK
NAK SL196 Hardened Stainless Sleeve for Shafts 98.37-98.43mm - Allow 7-10 Days
- Regular price
- €44,67 ex VAT
- Sale price
- €44,67
- Regular price
-
Not in stock
Quantity Price Breaks
10
€39,76
19
€37,52
29
€37,08
39
€36,63
49
€36,18
74
€35,74
99
€33,50
199
€33,06
249
€32,61
499
€32,16
999
€31,27
SKU:
SL196_NAK
NAK SL196 Hardened Stainless Sleeve for Shafts 98.37-98.43mm - Allow 7-10 Days
- Regular price
- €44,67 ex VAT
- Sale price
- €44,67
- Regular price
-
Description

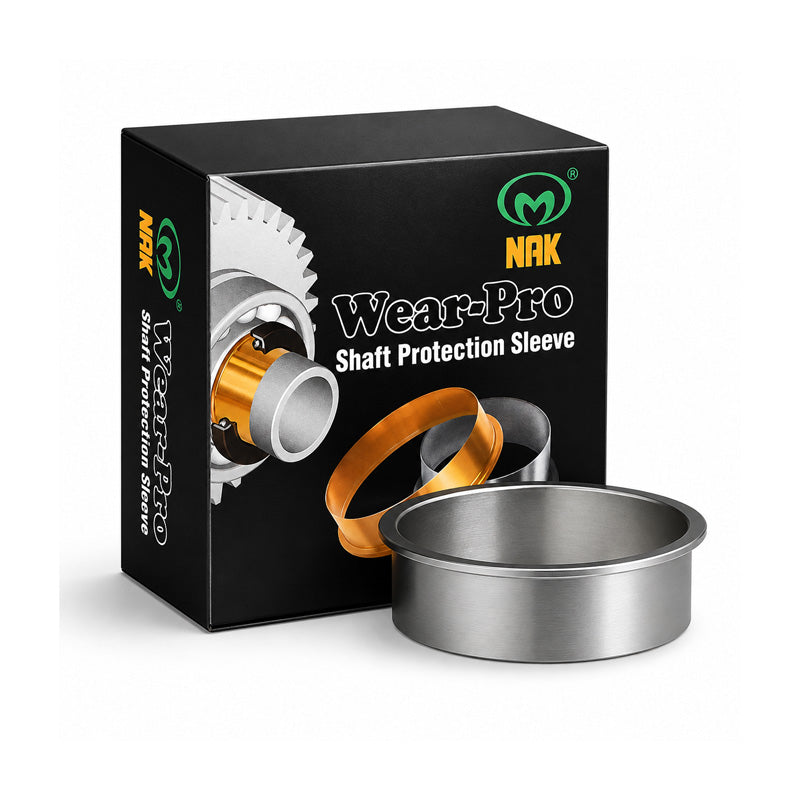

NAK Wear-Pro Shaft Protection Sleeves: Wear-Pro Sleeves offer an excellent sealing surface for radial shaft seals whilst reducing costly shaft machining or maintenance. These sleeves can be used anywhere with a radial shaft seal, such as in industrial gearboxes, motors, pumps, reducers, construction, agricultural equipment and automotive parts.
Benefits: Simple and quick installation, cost-effective, high-grade surface
Technical
| Shaft Diameter Range (A) | = | 98.37-98.43mm |
| Nominal Shaft Diameter (A) | = | 98.43mm |
| Flange Diameter (D) | = | 107.2mm |
| Width on Shaft (X) | = | 20.6mm |
| Overall Width (Y) | = | 25.4mm |
| Installation Depth (Z) | = | 47.6mm |
| Flange Diameter (D) Tolerance | = | 1.6mm |
| Width on Shaft (X) Tolerance | = | 0.8mm |
| Overall Width (Y) Tolerance | = | 0.8mm |
