SKU: SL1.5/8-RHP

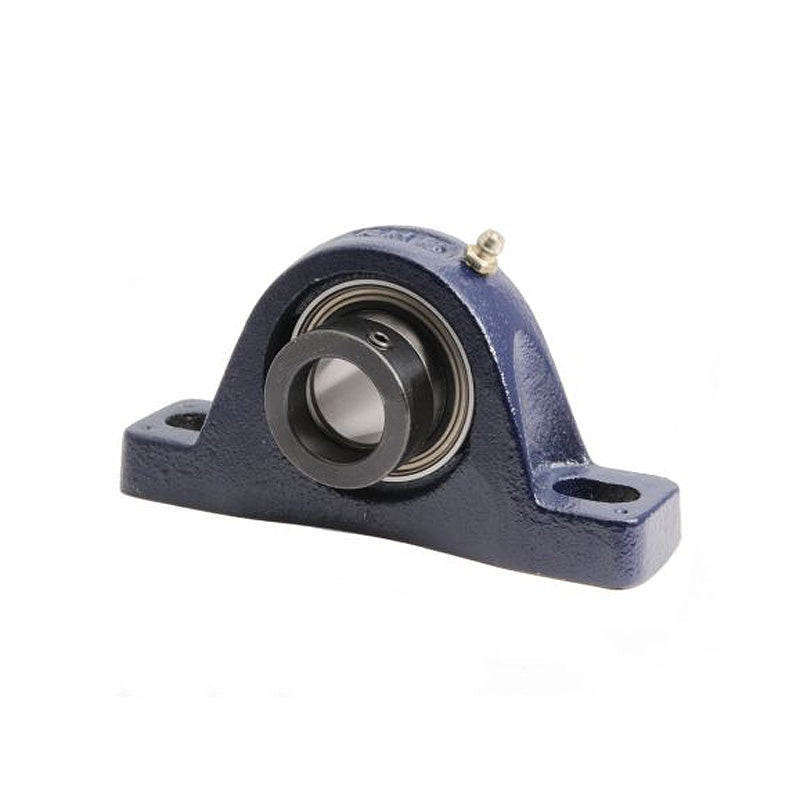

RHP SL1-5/8 Two Bolt Cast Iron Pillow Block and 1-5/8 Bore Grub Screw Full Width Insert

RHP SL1-5/8 Two Bolt Cast Iron Pillow Block and 1-5/8 Bore Grub Screw Full Width Insert
Regular price €85,68 ex VAT
Regular price Sale price €85,68 ex VAT
Sale Sold out

In stock

Price Break
10+ €65,12
20+ €61,46
30+ €60,73
40+ €59,99
50+ €59,26
75+ €58,53
100+ €54,87
200+ €54,14
250+ €53,41
500+ €52,68
1000+ €51,21
Quantity

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical
Bore 1-5/8 inch
L 7.776 inch
H 2.062 inch
H1 0.724 inch
H2 4.189 inch
J max 6.358 inch
J min 5.571 inch
G 0.5 inch
A 2.126 inch
A1 1.378 inch
B 1.938 inch
s 0.752 inch
s1 0.435 inch
d1 2.256 inch
Dynamic load Cr 32500 N
Static load Cor 20500 N
Rec max speed 3700 rpm
Insert <a href="advanced_search_result.php?keywords=1045-1-5/8G+insonly">1045-1-5/8G Click Here</a>
Casting group 7
Grease nipple thread 1/4 UNF, 1/4 inch x 28 TPI
