SKU: SL050_IMP_NAK
NAK SL050 Hardened Stainless Sleeve for Shafts 1.490-1.496 inch - Allow 7-10 Days
NAK SL050 Hardened Stainless Sleeve for Shafts 1.490-1.496 inch - Allow 7-10 Days
Regular price
€26,19
ex VAT
Regular price
Sale price
€26,19
ex VAT
Equivalent to: CR99147
In stock
Price Break
10+
€19,90
19+
€18,78
29+
€18,56
39+
€18,34
49+
€18,11
74+
€17,89
99+
€16,77
199+
€16,55
249+
€16,32
499+
€16,10
999+
€15,65
Quantity
Couldn't load pickup availability
Description
Description

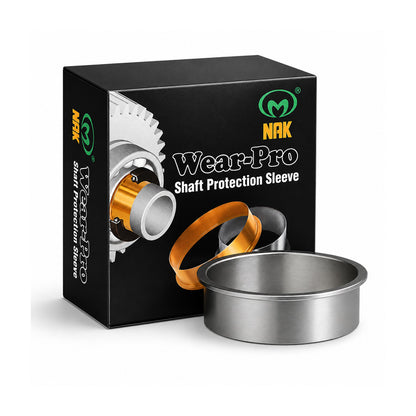

NAK Wear-Pro Shaft Protection Sleeves: Wear-Pro Sleeves offer an excellent sealing surface for radial shaft seals whilst reducing costly shaft machining or maintenance. These sleeves can be used anywhere with a radial shaft seal, such as in industrial gearboxes, motors, pumps, reducers, construction, agricultural equipment and automotive parts.
Benefits: Simple and quick installation, cost-effective, high-grade surface
- Brand / Quality:
- NAK - High Quality
- Width:
- 0.669 inch
- Material:
- SAE 30304 Hardened Stainless
- Shaft Diameter:
- 1.496 inch
- Flange Diameter:
- 1.78 inch
Technical
Technical
| Shaft Diameter Range (A) | 1.490-1.496 inch |
|---|---|
| Nominal Shaft Diameter (A) | 1.496 inch |
| Flange Diameter (D) | 1.78 inch |
| Width on Shaft (X) | 0.512 inch |
| Overall Width (Y) | 0.669 inch |
| Installation Depth (Z) | 0.984 inch |
| Flange Diameter (D) Tolerance | 1.6mm |
| Width on Shaft (X) Tolerance | 0.8mm |
| Overall Width (Y) Tolerance | 0.8mm |
