SKU: SL005_NAK
NAK SL005 Hardened Stainless Sleeve for Shafts 14.96-15.06mm - Allow 7-10 Days
- Regular price
- €24,07 ex VAT
- Sale price
- €24,07
- Regular price
-
Not in stock
Quantity Price Breaks
10
€21,42
19
€20,22
29
€19,98
39
€19,74
49
€19,50
74
€19,26
99
€18,05
199
€17,81
249
€17,57
499
€17,33
999
€16,85
SKU:
SL005_NAK
NAK SL005 Hardened Stainless Sleeve for Shafts 14.96-15.06mm - Allow 7-10 Days
- Regular price
- €24,07 ex VAT
- Sale price
- €24,07
- Regular price
-
Description
NAK Wear-Pro Shaft Protection Sleeves: Wear-Pro Sleeves offer an excellent sealing surface for radial shaft seals whilst reducing costly shaft machining or maintenance. These sleeves can be used anywhere with a radial shaft seal, such as in industrial gearboxes, motors, pumps, reducers, construction, agricultural equipment and automotive parts.
Benefits: Simple and quick installation, cost-effective, high-grade surface
Technical

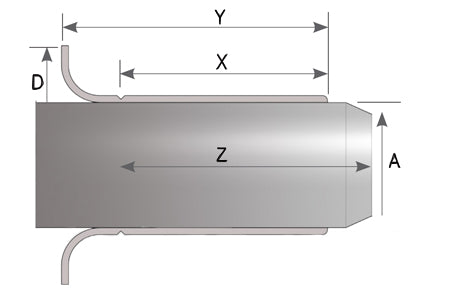

| Shaft Diameter Range (A) | = | 14.96-15.06mm |
| Nominal Shaft Diameter (A) | = | 15mm |
| Flange Diameter (D) | = | 19.1mm |
| Width on Shaft (X) | = | 5mm |
| Overall Width (Y) | = | 9mm |
| Installation Depth (Z) | = | 47.3mm |
| Flange Diameter (D) Tolerance | = | 1.6mm |
| Width on Shaft (X) Tolerance | = | 0.8mm |
| Overall Width (Y) Tolerance | = | 0.8mm |
