SKU: KMT2-SKF

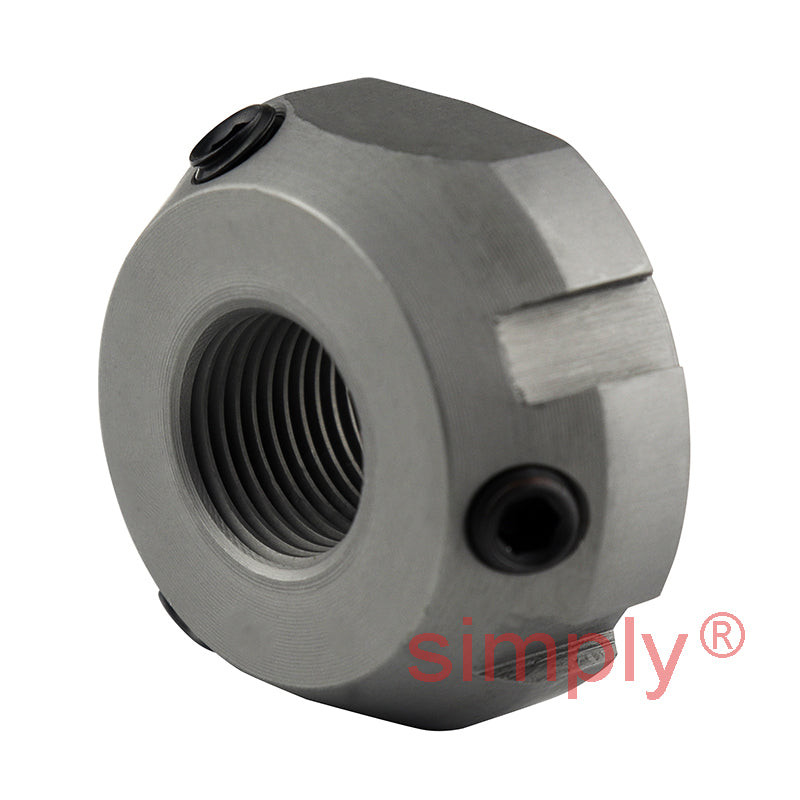

SKF KMT2 Precision Lock Nut with Locking Pins M15x1mm
- Regular price
- €155,69 ex VAT
- Sale price
- €155,69
- Regular price
-
Not in stock
Quantity Price Breaks
10
€138,56
19
€130,78
29
€129,22
39
€127,67
49
€126,11
74
€124,55
99
€116,77
199
€115,21
249
€113,65
499
€112,10
999
€108,98
SKU:
KMT2-SKF
SKF KMT2 Precision Lock Nut with Locking Pins M15x1mm
- Regular price
- €155,69 ex VAT
- Sale price
- €155,69
- Regular price
-
Description
|
SKF Precision KMT Lock Nuts: Manufactured with standard ISO threads and a relieved external diameter primarily used for precision bearing installation and a chamfered front face for ease of access to the radial locking pins mounted at 120 degrees around the perimeter and diagonally to the threads and allow for minor radial alignment adjustments. Benefits: Efficient, secure, inexpensive, removable and re-useable |
Technical
| d1 | = | 26mm |
| d2 | = | 33mm |
| d3 | = | 28mm |
| d4 | = | 16mm |
| B | = | 16mm |
| b | = | 4mm |
| h | = | 2mm |
| M | = | 30mm |
| Axial load capacity | = | 60 kN |
| Loosening torque | = | 20 Nm |
| Weight | = | 0.075 kg |
| G | = | M15x1 |
| Spanner | = | HN4 |
| Grub screw | = | M5 |
| Screw torque | = | 4.5 Nm |
