SKU: SIKB12F/VZ019-SKF

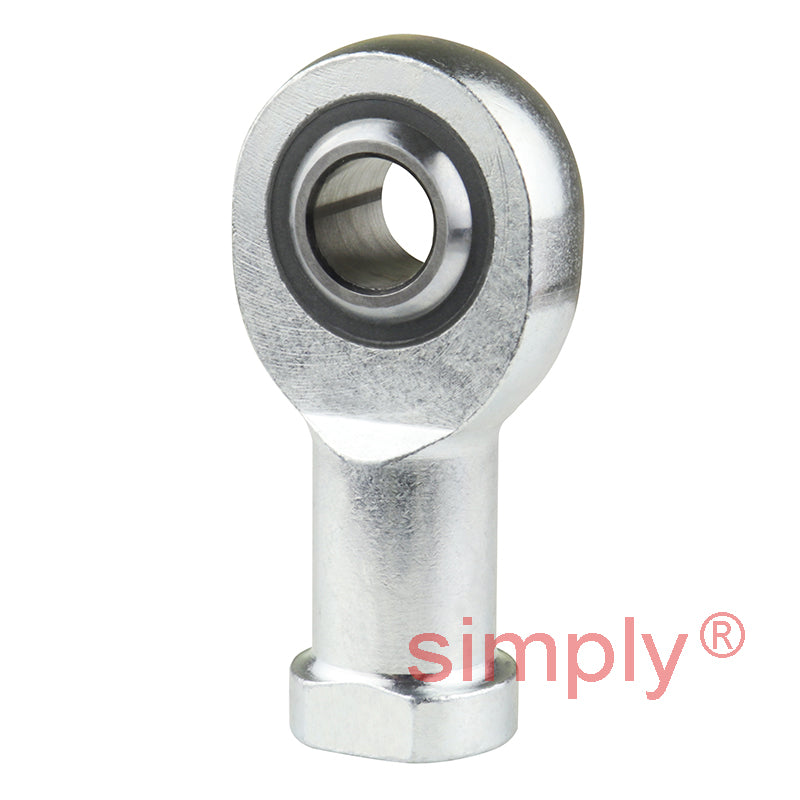

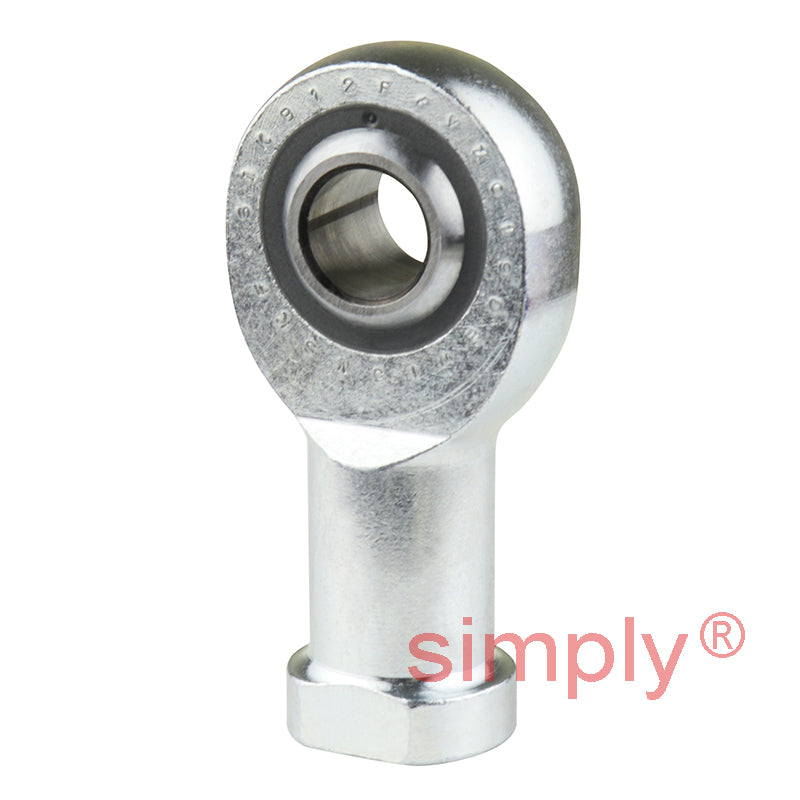

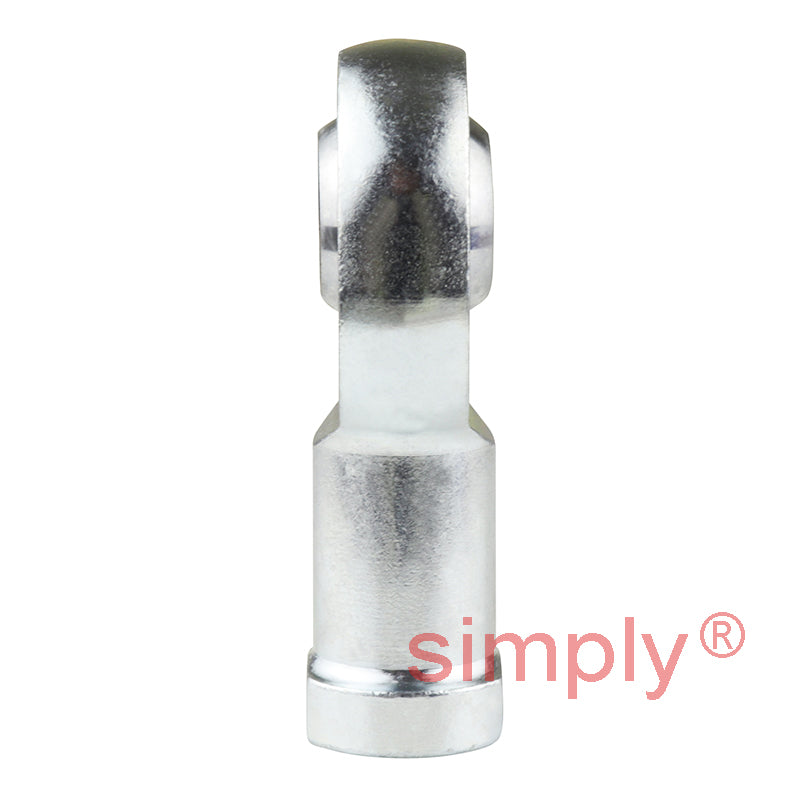

SKF SIKB12FVZ019 Right Hand Steel / PTFE FRP Lined Plain Female Rod End M12x1.25 Thread
- Regular price
- €34,55 ex VAT
- Sale price
- €34,55
- Regular price
-
In stock
Quantity Price Breaks
10
€30,75
19
€29,02
29
€28,68
39
€28,33
49
€27,99
74
€27,64
99
€25,91
199
€25,57
249
€25,22
499
€24,88
999
€24,19
SKU:
SIKB12F/VZ019-SKF
SKF SIKB12FVZ019 Right Hand Steel / PTFE FRP Lined Plain Female Rod End M12x1.25 Thread
- Regular price
- €34,55 ex VAT
- Sale price
- €34,55
- Regular price
-
Description
|
SKF SIKB..F Series Rod End Bearings: This series is classed as maintenance free rod end bearings. Comprising of sliding contact surfaces of steel against PTFE impregnated fibre re-in forced polymer (FRP) these rod end bearings are unsealed and will operate within -40deg C to +75 deg C, load carrying capacity will be reduced over +50 degrees C. Rod ends with a Steel / PTFE FRP sliding contact surface combination consist of a rod end housing and a spherical plain bearing inner ring. Between the housing and the inner ring, a sliding layer of fibre reinforced polymer, containing PTFE, is molded to the housing. Left and Right hand threaded versions are available an L in the part number denotes the left hand option. These are metric sized rod end bearings. Application: Suitable for heavy, constant direction loads, where low coefficient of friction is required; limited suitability for alternating loads, shock loads. Benefits: Maintenance free, Steel / PTFE FRP |
