SKU: SI20ES-SKF

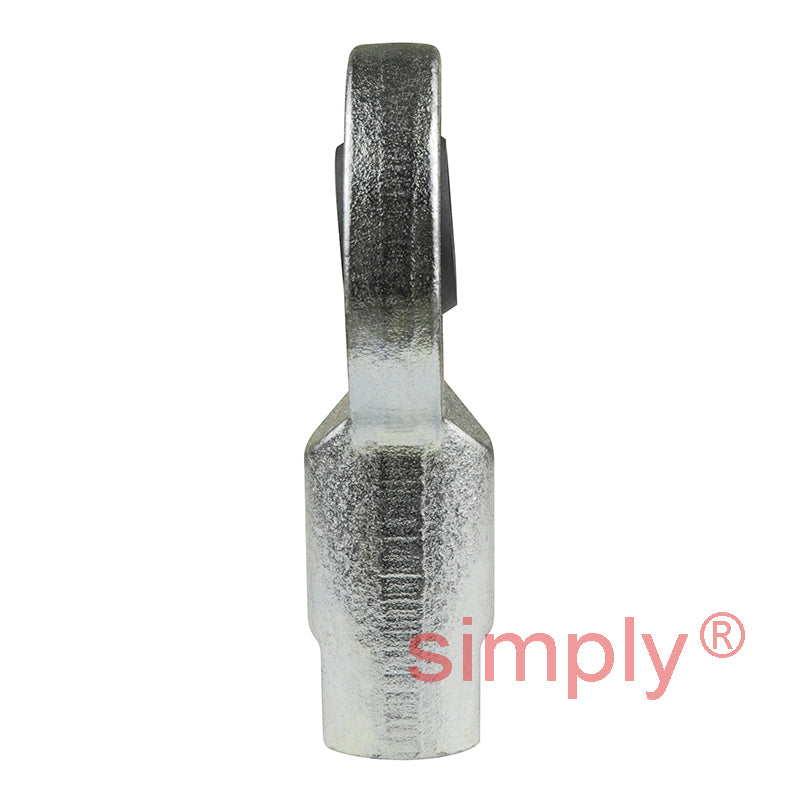

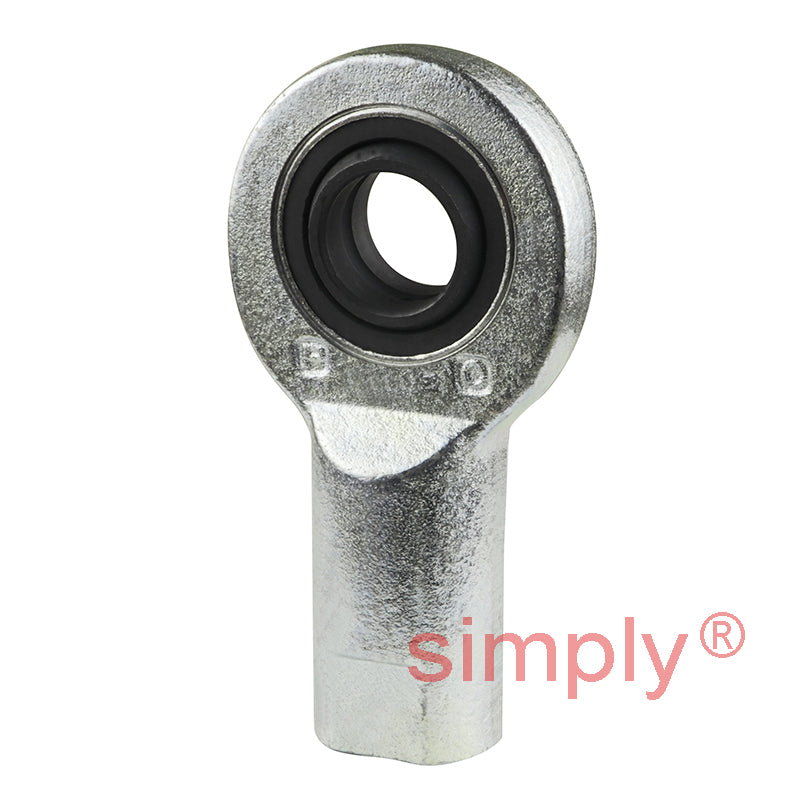

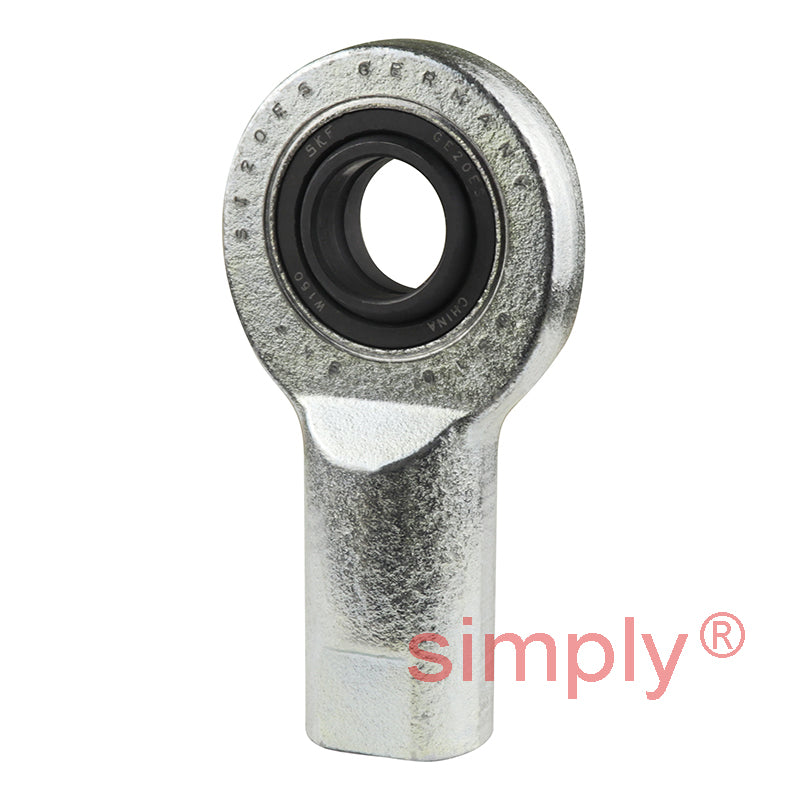

SKF SI20ES Right Hand Steel / Steel Plain Female Rod End M20x1.5 Thread

Name: SKF SI20ES Right Hand Steel / Steel Plain Female Rod End M20x1.5 Thread
Brand: SKF
SKU: SI20ES-SKF
Price: 52.02 EUR
Availability: InStock

€52,02 ex VAT

Sale Sold out

Equivalent to: SIA20ES GIR20ES FI20D GIR20DO

In stock

Price Break

10+ €39,53

19+ €37,31

29+ €36,86

39+ €36,42

49+ €35,98

74+ €35,53

99+ €33,31

199+ €32,87

249+ €32,42

499+ €31,98

999+ €31,09

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

SKF SI..ES Series Rod End Bearings: This series is classed as rod end bearings requiring maintenance. Comprising of sliding contact surfaces of steel against steel these rod end bearings are unsealed and require maintenance from time to time, there is a dedicated lubrication point on models from 15 to 20mm provided in the form of a 2.5mm dia lubrication hole in the rod end head, models from 25 to 80mm are provided with a grease nipple, this aligns with an annular groove in the outer raceways and the lubricant passes through small holes onto the mating surfaces, there is also an annular groove on the inside of the ball so lubricant can also be fed through the spindle on which it is mounted if required. These are metric sized female rod end bearings. They are made of heat treatable C45V steel and zinc coated and chromatized and will operate within -50 deg C to +200 deg C.
Application: Suitable for heavy static or alternating loads, shock loads.
Benefits: Re-lubricate-able, cleanable.

Brand / Quality:: SKF - High Quality
Thread Size:: M20x1.5
Thread M / F:: Female
Thread Direction:: Right Hand
Inside Diameter:: 20mm

Technical

d	20mm
d2 max	54mm
G	M20x1.5
B	16mm
C1 max	13.5mm
h	77mm
a	9deg
Dynamic load C	30 kN
Static load Co	57 kN
Weight	0.36 kg
dk	29mm
d4	28mm
l3 min	30mm
l4 max	106mm
l5	16mm
l7 min	24mm
r1 min	0.3mm
w h14	24mm
