SKU: SFT7/8EC-RHP
RHP SFT7/8EC Two Bolt Oval Cast Iron Flange Housing 7/8 inch Bore Insert
- Regular price
- €48,86 ex VAT
- Sale price
- €48,86
- Regular price
-
Not in stock
Quantity Price Breaks
10
€43,49
20
€41,04
30
€40,55
40
€40,07
50
€39,58
75
€39,09
100
€36,65
200
€36,16
250
€35,67
500
€35,18
1000
€34,20
SKU:
SFT7/8EC-RHP
RHP SFT7/8EC Two Bolt Oval Cast Iron Flange Housing 7/8 inch Bore Insert
- Regular price
- €48,86 ex VAT
- Sale price
- €48,86
- Regular price
-
Description
|
RHP SFT EC Series 2 Bolt Oval Cast Iron Housing Units: Two bolt oval cast iron bearing unit supplied with a sealed flat back bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has an eccentric collar and grub screw to allow tightening against the shaft after installation. |

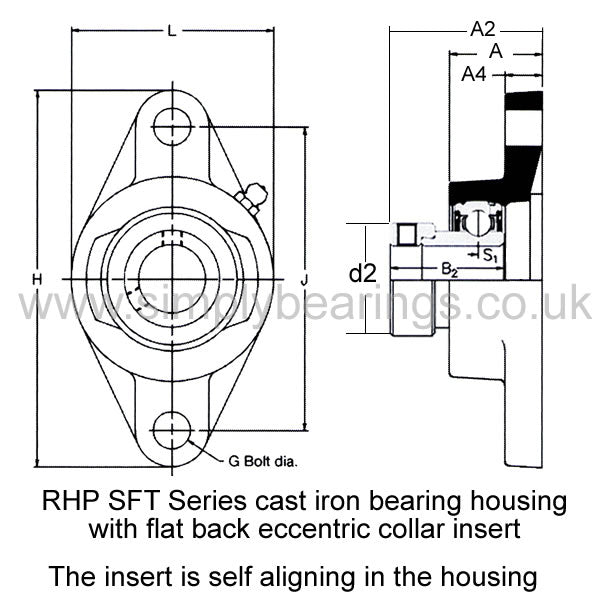

Technical
| Bore | = | 7/8 inch |
| L | = | 2.689 inch |
| H | = | 4.874 inch |
| J | = | 3.898 inch |
| G | = | 0.4375 inch |
| A | = | 1.126 inch |
| A2 | = | 1.67 inch |
| A4 | = | 0.437 inch |
| B2 | = | 1.217 inch |
| s1 | = | 0.298 inch |
| d2 | = | 1.5 inch |
| Dynamic load Cr | = | 14000 N |
| Static load Cor | = | 7880 N |
| Rec max speed | = | 6250 rpm |
| Weight | = | 0.9 kg |
| Insert | = | < |
| a href=" | = | advanced_search_result.php?keywords=1225-7/8ECG+insonly" |
| > | = | 1225-7/8ECG Click Here< |
| /a> | = | |
| Casting group | = | 3 |
| Grease nipple thread | = | 1/4 UNF, 1/4 inch x 28 TPI |
