SKU: SFT50DEC-RHP
RHP SFT50DEC Two Bolt Oval Cast Iron Flange Housing 50mm Bore Insert
RHP SFT50DEC Two Bolt Oval Cast Iron Flange Housing 50mm Bore Insert
Regular price
€112,18
ex VAT
Regular price
Sale price
€112,18
ex VAT
In stock
Price Break
10+
€85,25
20+
€80,46
30+
€79,50
40+
€78,55
50+
€77,59
75+
€76,63
100+
€71,84
200+
€70,88
250+
€69,93
500+
€68,97
1000+
€67,05
Quantity
Couldn't load pickup availability
Share this product
Description
Description
|
RHP SFT DEC Series 2 Bolt Oval Cast Iron Housing Units: Two bolt oval cast iron bearing unit supplied with a sealed full width bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has an eccentric collar and grub screw to allow tightening against the shaft after installation. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 50mm
- Style:
- SFT
- Bolt Hole Centres:
- 157mm

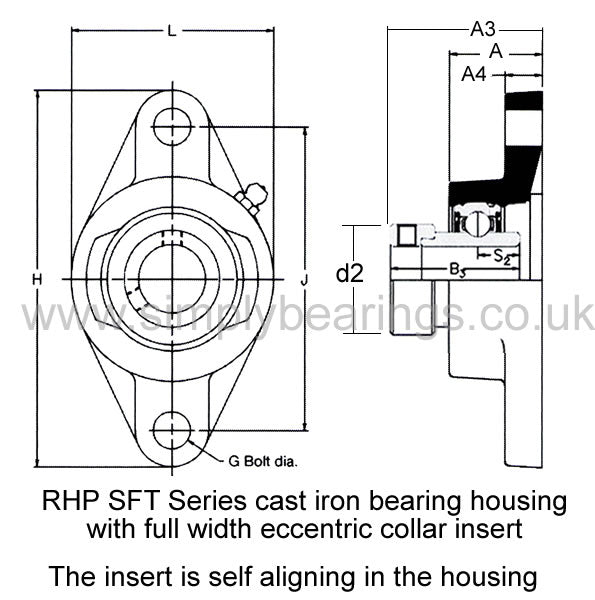

Technical
Technical
| Bore | 50mm |
|---|---|
| L | 115.9mm |
| H | 188.9mm |
| J | 157mm |
| G | 16mm |
| A | 39.7mm |
| A3 | 66.07mm |
| A4 | 14.3mm |
| B3 | 62.7mm |
| s2 | 24.65mm |
| d2 | 69.85mm |
| Dynamic load Cr | 35000 N |
| Static load Cor | 23200 N |
| Rec max speed | 3400 rpm |
| Weight | 2.5 kg |
| Insert | <a href="advanced_search_result.php?keywords=1050-50DECG+insonly">1050-50DECG Click Here</a> |
| Casting group | 8 |
| Grease nipple thread | 1/4 UNF, 1/4 inch x 28 TPI |
