SKU: SFT45DEC-RHP
RHP SFT45DEC Two Bolt Oval Cast Iron Flange Housing 45mm Bore Insert
- Regular price
- €99,50 ex VAT
- Sale price
- €99,50
- Regular price
-
ex VAT
Quantity Price Breaks
Description
|
RHP SFT DEC Series 2 Bolt Oval Cast Iron Housing Units: Two bolt oval cast iron bearing unit supplied with a sealed full width bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has an eccentric collar and grub screw to allow tightening against the shaft after installation. |

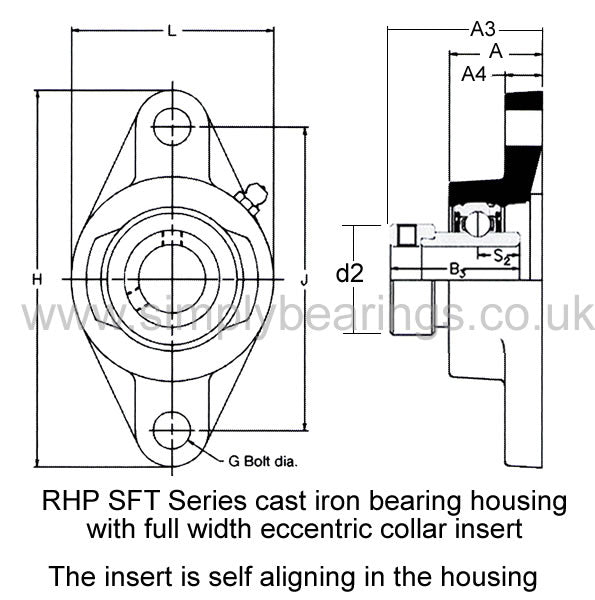

Technical
| Bore | = | 45mm |
| L | = | 111.1mm |
| H | = | 179.4mm |
| J | = | 148.5mm |
| G | = | 16mm |
| A | = | 35.3mm |
| A3 | = | 58.9mm |
| A4 | = | 14.3mm |
| B3 | = | 56.34mm |
| s2 | = | 21.46mm |
| d2 | = | 63.5mm |
| Dynamic load Cr | = | 32500 N |
| Static load Cor | = | 20500 N |
| Rec max speed | = | 3700 rpm |
| Weight | = | 2.2 kg |
| Insert | = | < |
| a href=" | = | advanced_search_result.php?keywords=1045-45DECG+insonly" |
| > | = | 1045-45DECG Click Here< |
| /a> | = | |
| Casting group | = | 7 |
| Grease nipple thread | = | 1/4 UNF, 1/4 inch x 28 TPI |
