SKU: SFT25A-RHP

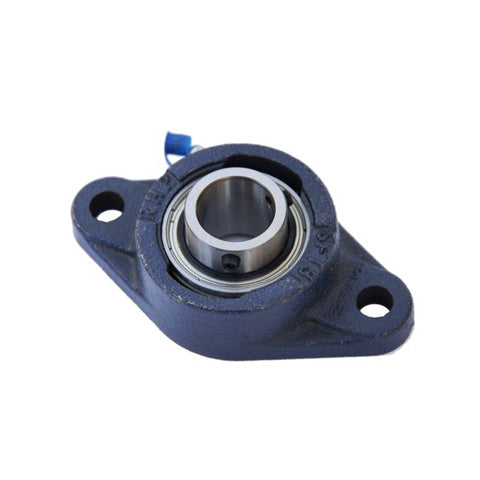

RHP SFT25A Two Bolt Oval Cast Iron Flange Housing 25mm Bore Insert
- Regular price
- €44,82 ex VAT
- Sale price
- €44,82
- Regular price
-
ex VAT
Quantity Price Breaks
Description
|
RHP SFT Series 2 Bolt Oval Cast Iron Housings: Bearing units supplied with a flat back sealed bearing insert fitted in the cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has two grub screws to allow tightening against the shaft after installation. |

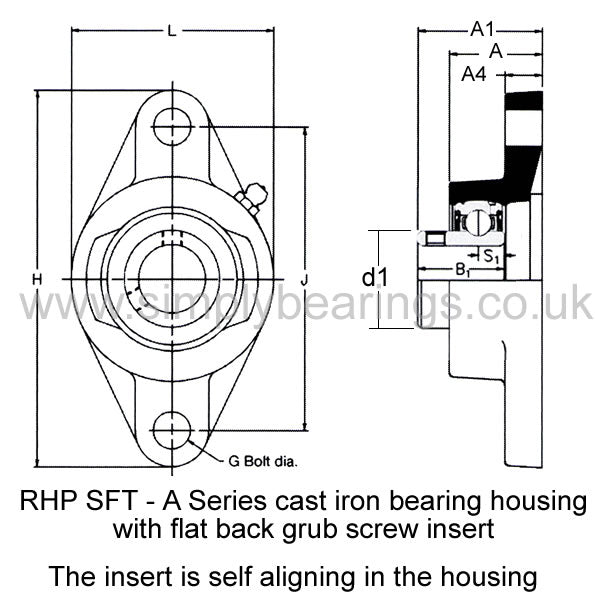

Technical
| Bore | = | 25mm |
| L | = | 68.3mm |
| H | = | 123.8mm |
| J | = | 99mm |
| G | = | 10mm |
| A | = | 28.6mm |
| A1 | = | 38.84mm |
| A4 | = | 11.1mm |
| B1 | = | 27.35mm |
| s1 | = | 7.56mm |
| d1 | = | 34.01mm |
| Dynamic load Cr | = | 14000 N |
| Static load Cor | = | 7880 N |
| Rec max speed | = | 6250 rpm |
| Weight | = | 0.9 kg |
| Insert | = | < |
| a href=" | = | advanced_search_result.php?keywords=1225-25AG+insonly" |
| > | = | 1225-25AG Click Here< |
| /a> | = | |
| Casting group | = | 3 |
| Grease nipple thread | = | 1/4 UNF, 1/4 inch x 28 TPI |
