SKU: SFT20-RHP

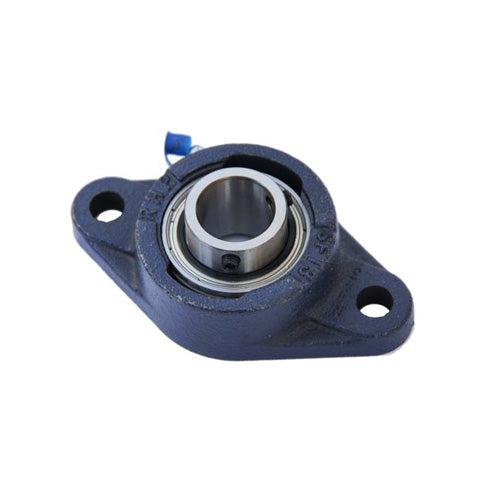

RHP SFT20 Two Bolt Oval Cast Iron Flange Housing 20mm Bore Insert
RHP SFT20 Two Bolt Oval Cast Iron Flange Housing 20mm Bore Insert
Regular price
€36,70
ex VAT
Regular price
Sale price
€36,70
ex VAT
In stock
Price Break
10+
€27,89
20+
€26,33
30+
€26,01
40+
€25,70
50+
€25,39
75+
€25,07
100+
€23,51
200+
€23,19
250+
€22,88
500+
€22,57
1000+
€21,94
Quantity
Couldn't load pickup availability
Share this product
Description
Description
|
RHP SFT Series 2 Bolt Oval Cast Iron Housings: Bearing units supplied with a full width sealed bearing insert fitted in the cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has two grub screws to allow tightening against the shaft after installation. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 20mm
- Style:
- SFT
- Bolt Hole Centres:
- 90mm
Technical
Technical
| Bore | 20mm |
|---|---|
| L | 60.3mm |
| H | 111.9mm |
| J | 90mm |
| G | 10mm |
| A | 27.8mm |
| A1 | 37.26mm |
| A4 | 11.1mm |
| B | 30.96mm |
| s | 12.75mm |
| d1 | 28.5mm |
| Dynamic load Cr | 12800 N |
| Static load Cor | 6650 N |
| Rec max speed | 6700 rpm |
| Weight | 0.6 kg |
| Insert | <a href="advanced_search_result.php?keywords=1020-20G+insonly">1020-20G Click Here</a> |
| Casting group | 2 |
| Grease nipple thread | 1/4 UNF, 1/4 inch x 28 TPI |
