SKU: SFT2.3/8-RHP

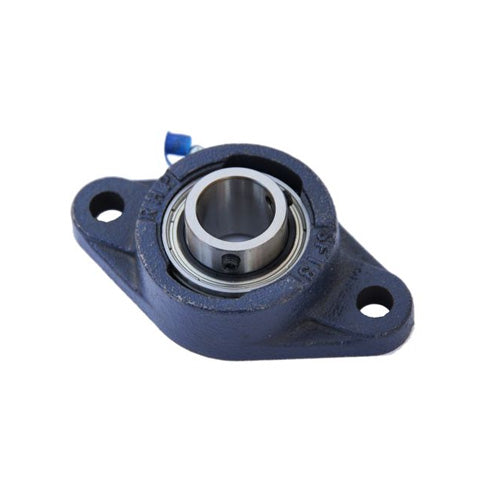

RHP SFT2-3/8 Two Bolt Oval Cast Iron Flange Housing 2-3/8 inch Bore Insert
RHP SFT2-3/8 Two Bolt Oval Cast Iron Flange Housing 2-3/8 inch Bore Insert
Regular price
€156,36
ex VAT
Regular price
Sale price
€156,36
ex VAT
In stock
Price Break
10+
€118,82
20+
€112,15
30+
€110,81
40+
€109,48
50+
€108,14
75+
€106,81
100+
€100,13
200+
€98,79
250+
€97,46
500+
€96,12
1000+
€93,45
Quantity
Couldn't load pickup availability
Share this product
Description
Description
|
RHP SFT Series 2 Bolt Oval Cast Iron Housings: Bearing units supplied with a full width sealed bearing insert fitted in the cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has two grub screws to allow tightening against the shaft after installation. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 60.33mm = 2.375 (2-3/8) inch
- Style:
- SFT
- Bolt Hole Centres:
- 202.01mm = 7.953 (7-61/64) inch
Technical
Technical
| Bore | 2-3/8 inch |
|---|---|
| L | 5.437 inch |
| H | 9.252 inch |
| J | 7.953 inch |
| G | 0.625 inch |
| A | 1.874 inch |
| A1 | 2.901 inch |
| A4 | 0.689 inch |
| B | 2.562 inch |
| s | 1.002 inch |
| d1 | 2.966 inch |
| Dynamic load Cr | 48000 N |
| Static load Cor | 33000 N |
| Rec max speed | 2800 rpm |
| Weight | 4.3 kg |
| Insert | <a href="advanced_search_result.php?keywords=1060-2-3/8G+insonly">1060-2-3/8G Click Here</a> |
| Casting group | 10 |
| Grease nipple thread | 1/4 UNF, 1/4 inch x 28 TPI |
