SKU: SFT2.3/16-RHP

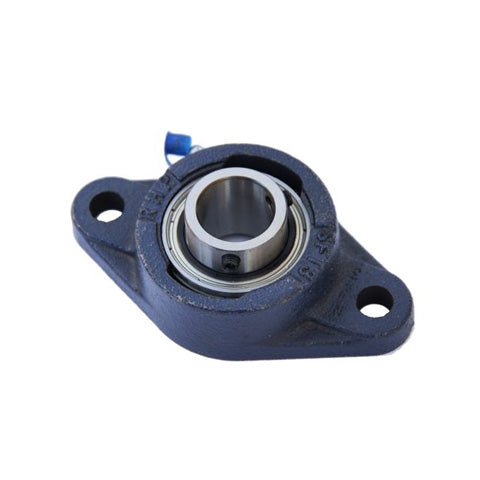

RHP SFT2-3/16 Two Bolt Oval Cast Iron Flange Housing 2-3/16 inch Bore Insert
RHP SFT2-3/16 Two Bolt Oval Cast Iron Flange Housing 2-3/16 inch Bore Insert
Regular price
€128,46
ex VAT
Regular price
Sale price
€128,46
ex VAT
In stock
Price Break
10+
€97,62
20+
€92,14
30+
€91,04
40+
€89,94
50+
€88,85
75+
€87,75
100+
€82,27
200+
€81,17
250+
€80,07
500+
€78,97
1000+
€76,78
Quantity
Couldn't load pickup availability
Share this product
Description
Description
|
RHP SFT Series 2 Bolt Oval Cast Iron Housings: Bearing units supplied with a full width sealed bearing insert fitted in the cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has two grub screws to allow tightening against the shaft after installation. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 55.56mm = 2.187 (2-3/16) inch
- Style:
- SFT
- Bolt Hole Centres:
- 183.998mm = 7.244 inch
Technical
Technical
| Bore | 2-3/16 inch |
|---|---|
| L | 5 inch |
| H | 8.5 inch |
| J | 7.244 inch |
| G | 0.625 inch |
| A | 1.72 inch |
| A1 | 2.532 inch |
| A4 | 0.689 inch |
| B | 2.187 inch |
| s | 0.877 inch |
| d1 | 2.709 inch |
| Dynamic load Cr | 43500 N |
| Static load Cor | 29200 N |
| Rec max speed | 3100 rpm |
| Weight | 3.5 kg |
| Insert | <a href="advanced_search_result.php?keywords=1055-2-3/16G+insonly">1055-2-3/16G Click Here</a> |
| Casting group | 9 |
| Grease nipple thread | 1/4 UNF, 1/4 inch x 28 TPI |
