SKU: SFT1EC-RHP
RHP SFT1EC Two Bolt Oval Cast Iron Flange Housing 1 inch Bore Insert
RHP SFT1EC Two Bolt Oval Cast Iron Flange Housing 1 inch Bore Insert
Regular price
€49,03
ex VAT
Regular price
Sale price
€49,03
ex VAT
In stock
Price Break
10+
€37,27
20+
€35,17
30+
€34,76
40+
€34,34
50+
€33,92
75+
€33,50
100+
€31,41
200+
€30,99
250+
€30,57
500+
€30,15
1000+
€29,31
Quantity
Couldn't load pickup availability
Share this product
Description
Description
|
RHP SFT EC Series 2 Bolt Oval Cast Iron Housing Units: Two bolt oval cast iron bearing unit supplied with a sealed flat back bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has an eccentric collar and grub screw to allow tightening against the shaft after installation. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 25.4mm = 1 inch
- Style:
- SFT
- Bolt Hole Centres:
- 99.01mm = 3.898 inch
Technical
Technical

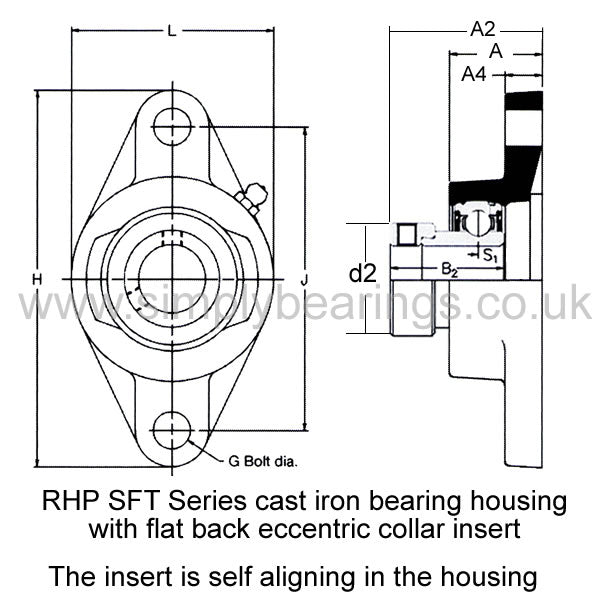

| Bore | 1 inch |
|---|---|
| L | 2.689 inch |
| H | 4.874 inch |
| J | 3.898 inch |
| G | 0.4375 inch |
| A | 1.126 inch |
| A2 | 1.67 inch |
| A4 | 0.437 inch |
| B2 | 1.217 inch |
| s1 | 0.298 inch |
| d2 | 1.5 inch |
| Dynamic load Cr | 14000 N |
| Static load Cor | 7880 N |
| Rec max speed | 6250 rpm |
| Weight | 0.9 kg |
| Insert | <a href="advanced_search_result.php?keywords=1225-1ECG+insonly">1225-1ECG Click Here</a> |
| Casting group | 3 |
| Grease nipple thread | 1/4 UNF, 1/4 inch x 28 TPI |
