SKU: SFT16-RHP
RHP SFT16 Two Bolt Oval Cast Iron Flange Housing 16mm Bore Insert
RHP SFT16 Two Bolt Oval Cast Iron Flange Housing 16mm Bore Insert
Regular price
€37,79
ex VAT
Regular price
Sale price
€37,79
ex VAT
In stock
Price Break
10+
€28,72
20+
€27,10
30+
€26,78
40+
€26,46
50+
€26,14
75+
€25,81
100+
€24,20
200+
€23,88
250+
€23,55
500+
€23,23
1000+
€22,59
Quantity
Couldn't load pickup availability
Share this product
Description
Description
|

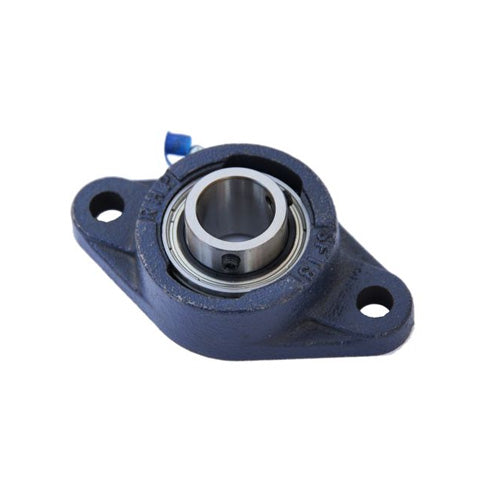

RHP SFT Series 2 Bolt Oval Cast Iron Housings: Bearing units supplied with a full width sealed bearing insert fitted in the cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has two grub screws to allow tightening against the shaft after installation. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 16mm
- Style:
- SFT
- Bolt Hole Centres:
- 76.5mm
Technical
Technical
| Bore | 16mm |
|---|---|
| L | 52.5mm |
| H | 98.5mm |
| J | 76.5mm |
| G | 10mm |
| A | 24.6mm |
| A1 | 32.87mm |
| A4 | 9.5mm |
| B | 27.38mm |
| s | 11.55mm |
| d1 | 24.21mm |
| Dynamic load Cr | 9550 N |
| Static load Cor | 4800 N |
| Rec max speed | 7000 rpm |
| Weight | 0.4 kg |
| Insert | <a href="advanced_search_result.php?keywords=1017-16G+insonly">1017-16G Click Here</a> |
| Casting group | SFT1 |
| Grease nipple thread | 1/4 UNF, 1/4 inch x 28 TPI |
