SKU: SF75DEC-RHP

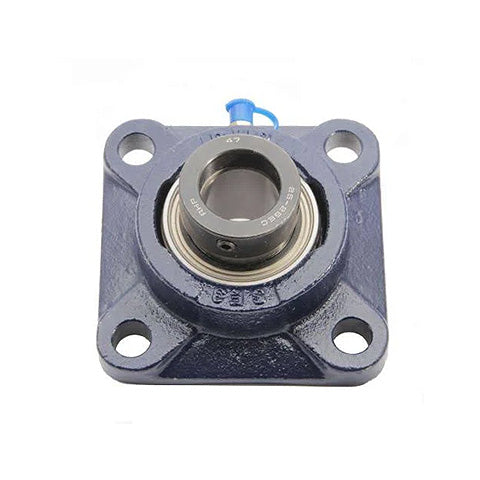

RHP SF75DEC Four Bolt Square Cast Iron Flange Housing and 75mm Bore Eccentric Collar Full Width Insert

RHP SF75DEC Four Bolt Square Cast Iron Flange Housing and 75mm Bore Eccentric Collar Full Width Insert
Regular price €351,09 ex VAT
Regular price Sale price €351,09 ex VAT
Sale Sold out

In stock

Price Break
10+ €266,81
20+ €251,82
30+ €248,83
40+ €245,83
50+ €242,83
75+ €239,83
100+ €224,84
200+ €221,85
250+ €218,85
500+ €215,85
1000+ €209,85
Quantity

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical
Bore 75mm
L 196.5mm
H 158.5mm
J 152.4mm
G 20mm
A 51.3mm
A3 91.21mm
A4 23mm
B3 91.72mm
s2 37.37mm
d2 101.6mm
Dynamic load Cr 66000 N
Static Load Cor 49500 N
Rec max speed 2300 rpm
Weight 8.6 kg
Insert <a href="advanced_search_result.php?keywords=1075-75DECG+insonly">1075-75DECG Click Here</a>
Casting group 12
Grease nipple thread 1/4 UNF, 1/4 inch x 28 TPI
