SKU: SF70DEC-RHP

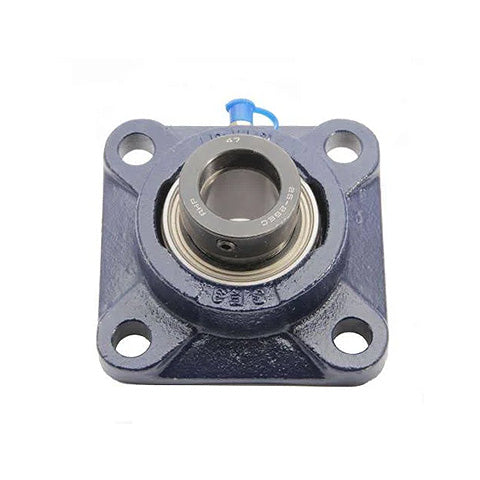

RHP SF70DEC Four Bolt Square Cast Iron Flange Housing and 70mm Bore Eccentric Collar Full Width Insert
RHP SF70DEC Four Bolt Square Cast Iron Flange Housing and 70mm Bore Eccentric Collar Full Width Insert
Regular price
€279,79
ex VAT
Regular price
Sale price
€279,79
ex VAT
In stock
Price Break
10+
€212,63
20+
€200,69
30+
€198,30
40+
€195,91
50+
€193,52
75+
€191,13
100+
€179,19
200+
€176,80
250+
€174,41
500+
€172,02
1000+
€167,24
Quantity
Couldn't load pickup availability
Share this product
Description
Description
|
RHP SF DEC Series 4 Bolt Square Cast Iron Housings: Bearing units supplied with a full width sealed bearing insert fitted in the cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has an eccentric collar and grub screw to allow tightening against the shaft after installation. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 70mm
- Style:
- SF
- Bolt Hole Centres:
- 5.875mm
Technical
Technical
| Bore | 70mm |
|---|---|
| L | 7.382mm |
| H | 6.122mm |
| J | 5.875mm |
| G | 0.625mm |
| A | 1.874mm |
| A3 | 3.341mm |
| A4 | 0.709mm |
| B3 | 3.361mm |
| s2 | 1.346mm |
| d2 | 3.812mm |
| Dynamic load Cr | 61000 N |
| Static Load Cor | 45000 N |
| Rec max speed | 2450 rpm |
| Weight | 6.8 kg |
| Insert | <a href="advanced_search_result.php?keywords=1070-70DECG+insonly">1070-70DECG Click Here</a> |
| Casting group | 11 |
| Grease nipple thread | 1/4 UNF, 1/4 inch x 28 TPI |
