SKU: SF70-RHP
RHP SF70 Four Bolt Square Cast Iron Flange Housing and 70mm Bore Grub Screw Full Width Insert
RHP SF70 Four Bolt Square Cast Iron Flange Housing and 70mm Bore Grub Screw Full Width Insert
Regular price
€247,89
ex VAT
Regular price
Sale price
€247,89
ex VAT
In stock
Price Break
10+
€188,39
20+
€177,80
30+
€175,69
40+
€173,57
50+
€171,45
75+
€169,34
100+
€158,75
200+
€156,64
250+
€154,52
500+
€152,40
1000+
€148,17
Quantity
Couldn't load pickup availability
Share this product
Description
Description
|
RHP SF Series 4 Bolt Square Cast Iron Housings: Bearing units supplied with a sealed full width bearing insert fitted in the cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 70mm
- Style:
- SF
- Bolt Hole Centres:
- 149.22mm

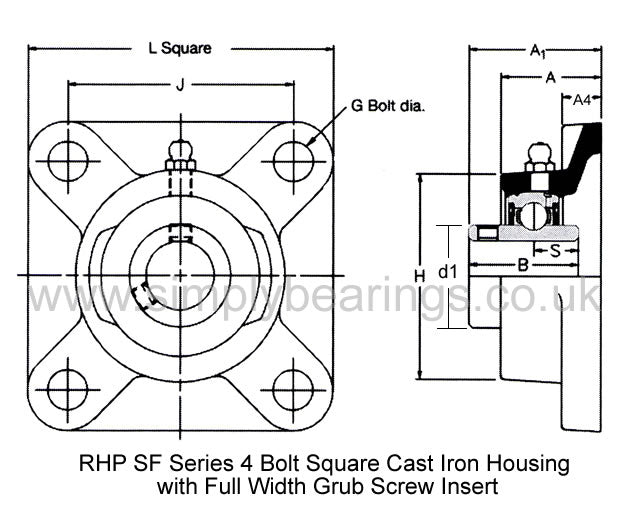

Technical
Technical
| Bore | 70mm |
|---|---|
| L | 187.5mm |
| H | 155.5mm |
| J | 149.22mm |
| G | 16mm |
| A | 47.6 |
| A1 | 77.72mm |
| A4 | 18mm |
| B | 74.63 |
| s | 30.23mm |
| d1 | 87mm |
| Dynamic load Cr | 61000 N |
| Static Load Cor | 45000 N |
| Rec max speed | 2450 rpm |
| Weight | 6.8 kg |
| Insert | <a href="advanced_search_result.php?keywords=1070-70G+insonly">1070-70G Click Here</a> |
| Casting group | 11 |
| Grease nipple thread | 1/4 UNF, 1/4 inch x 28 TPI |
