SKU: SF60DEC-RHP

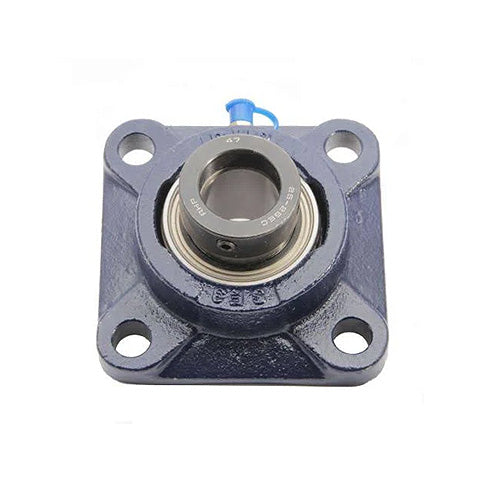

RHP SF60DEC Four Bolt Square Cast Iron Flange Housing and 60mm Bore Eccentric Collar Full Width Insert

RHP SF60DEC Four Bolt Square Cast Iron Flange Housing and 60mm Bore Eccentric Collar Full Width Insert
Regular price €186,61 ex VAT
Regular price Sale price €186,61 ex VAT
Sale Sold out

In stock

Price Break
10+ €141,82
20+ €133,85
30+ €132,26
40+ €130,66
50+ €129,07
75+ €127,48
100+ €119,51
200+ €117,91
250+ €116,32
500+ €114,73
1000+ €111,54
Quantity

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical
Bore 60mm
L 174.5mm
H 138.1mm
J 143mm
G 16mm
A 47.6mm
A3 80.77mm
A4 17.5mm
B3 77.82mm
s2 31.02mm
d2 84.12mm
Dynamic load Cr 48000 N
Static Load Cor 33000 N
Rec max speed 2800 rpm
Weight 4.7 kg
Insert <a href="advanced_search_result.php?keywords=1060-60DECG+insonly">1060-60DECG Click Here</a>
Casting group 10
Grease nipple thread 1/4 UNF, 1/4 inch x 28 TPI
