SKU: SF50A-RHP

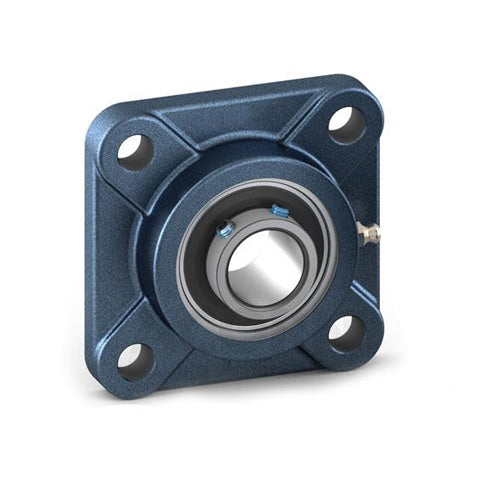

RHP SF50A Four Bolt Square Cast Iron Flange Housing and 50mm Bore Grub Screw Flat Back Insert
RHP SF50A Four Bolt Square Cast Iron Flange Housing and 50mm Bore Grub Screw Flat Back Insert
Regular price
€92,60
ex VAT
Regular price
Sale price
€92,60
ex VAT
In stock
Price Break
10+
€70,37
20+
€66,42
30+
€65,63
40+
€64,84
50+
€64,05
75+
€63,25
100+
€59,30
200+
€58,51
250+
€57,72
500+
€56,93
1000+
€55,35
Quantity
Couldn't load pickup availability
Share this product
Description
Description
|
RHP SF A Series 4 Bolt Square Cast Iron Housings: Bearing units supplied with a flat back sealed bearing insert fitted in the cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 50mm
- Style:
- SF
- Bolt Hole Centres:
- 111mm
Technical
Technical
| Bore | 50mm |
|---|---|
| L | 142.9mm |
| H | 115.9mm |
| J | 111mm |
| G | 16mm |
| A | 39.7 |
| A1 | 60.53mm |
| A4 | 14.3mm |
| B1 | 43.54mm |
| s1 | 11.05mm |
| d1 | 62.2mm |
| Dynamic load Cr | 35000 N |
| Static Load Cor | 23200 N |
| Rec max speed | 3400 rpm |
| Weight | 2.8 kg |
| Insert | <a href="advanced_search_result.php?keywords=1250-50AG+insonly">1250-50AG Click Here</a> |
| Casting group | 8 |
| Grease nipple thread | 1/4 UNF, 1/4 inch x 28 TPI |
