SKU: SF45-RHP

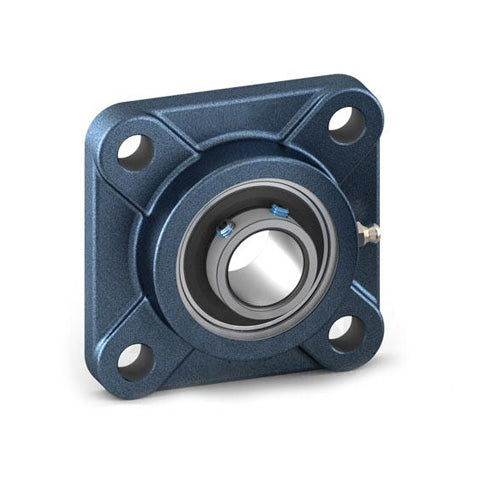

RHP SF45 Four Bolt Square Cast Iron Flange Housing and 45mm Bore Grub Screw Full Width Insert

RHP SF45 Four Bolt Square Cast Iron Flange Housing and 45mm Bore Grub Screw Full Width Insert
Regular price €78,43 ex VAT
Regular price Sale price €78,43 ex VAT
Sale Sold out

In stock

Price Break
10+ €59,61
20+ €56,26
30+ €55,59
40+ €54,92
50+ €54,25
75+ €53,58
100+ €50,23
200+ €49,56
250+ €48,89
500+ €48,22
1000+ €46,88
Quantity

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical
Bore 45mm
L 136.5mm
H 111.1mm
J 105mm
G 16mm
A 35.3
A1 54.18mm
A4 14.3mm
B 49.23
s 19.1mm
d1 57.3mm
Dynamic load Cr 32500 N
Static Load Cor 20500 N
Rec max speed 3700 rpm
Weight 2.6 kg
Insert <a href="advanced_search_result.php?keywords=1045-45G+insonly">1045-45G Click Here</a>
Casting group 7
Grease nipple thread 1/4 UNF, 1/4 inch x 28 TPI
