SKU: SF40-RHP

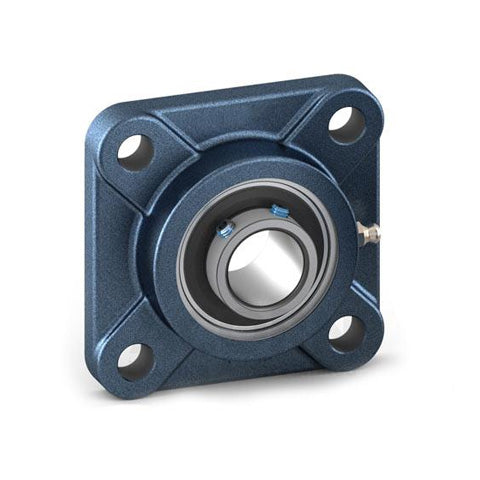

RHP SF40 Four Bolt Square Cast Iron Flange Housing and 40mm Bore Grub Screw Full Width Insert

RHP SF40 Four Bolt Square Cast Iron Flange Housing and 40mm Bore Grub Screw Full Width Insert
Regular price €68,43 ex VAT
Regular price Sale price €68,43 ex VAT
Sale Sold out

In stock

Price Break
10+ €52,00
20+ €49,08
30+ €48,50
40+ €47,91
50+ €47,33
75+ €46,74
100+ €43,82
200+ €43,24
250+ €42,65
500+ €42,07
1000+ €40,90
Quantity

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical
Bore 40mm
L 130.2mm
H 101.6mm
J 101.5mm
G 12mm
A 34.9
A1 54.18mm
A4 12.7mm
B 49.23
s 19.1mm
d1 52.7mm
Dynamic load Cr 32500 N
Static Load Cor 19900 N
Rec max speed 4000 rpm
Weight 2.2 kg
Insert <a href="advanced_search_result.php?keywords=1040-40G+insonly">1040-40G Click Here</a>
Casting group 6
Grease nipple thread 1/4 UNF, 1/4 inch x 28 TPI
