SKU: SF35-RHP

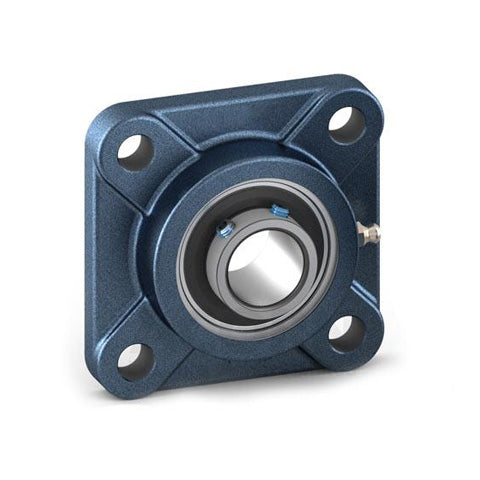

RHP SF35 Four Bolt Square Cast Iron Flange Housing and 35mm Bore Grub Screw Full Width Insert

RHP SF35 Four Bolt Square Cast Iron Flange Housing and 35mm Bore Grub Screw Full Width Insert
Regular price €60,25 ex VAT
Regular price Sale price €60,25 ex VAT
Sale Sold out

In stock

Price Break
10+ €45,79
20+ €43,22
30+ €42,70
40+ €42,19
50+ €41,67
75+ €41,16
100+ €38,59
200+ €38,07
250+ €37,56
500+ €37,04
1000+ €36,01
Quantity

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical
Bore 35mm
L 117.5mm
H 95.3mm
J 92mm
G 12mm
A 31.4
A1 46.41mm
A4 12.7mm
B 42.88
s 17.53mm
d1 46.69mm
Dynamic load Cr 25700 N
Static Load Cor 15300 N
Rec max speed 4500 rpm
Weight 1.7 kg
Insert <a href="advanced_search_result.php?keywords=1035-35G+insonly">1035-35G Click Here</a>
Casting group 5
Grease nipple thread 1/4 UNF, 1/4 inch x 28 TPI
