SKU: SF30DEC-RHP

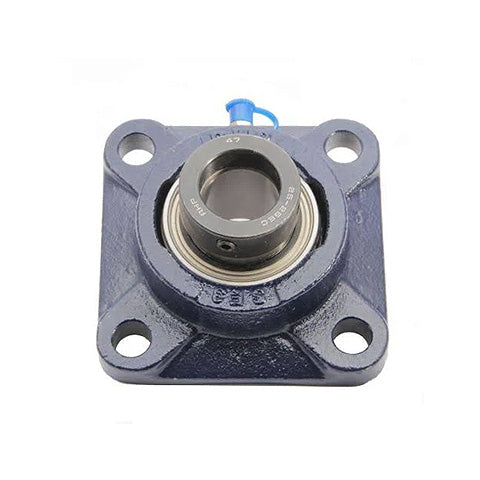

RHP SF30DEC Four Bolt Square Cast Iron Flange Housing and 30mm Bore Eccentric Collar Full Width Insert

RHP SF30DEC Four Bolt Square Cast Iron Flange Housing and 30mm Bore Eccentric Collar Full Width Insert
Regular price €63,25 ex VAT
Regular price Sale price €63,25 ex VAT
Sale Sold out

In stock

Price Break
10+ €48,07
20+ €45,37
30+ €44,83
40+ €44,29
50+ €43,75
75+ €43,21
100+ €40,51
200+ €39,96
250+ €39,42
500+ €38,88
1000+ €37,80
Quantity

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical
Bore 30mm
L 108mm
H 82.6mm
J 82.5mm
G 10mm
A 29.8mm
A3 50.09mm
A4 12.7mm
B3 48.42mm
s2 18.32mm
d2 44.45mm
Dynamic load Cr 19500 N
Static Load Cor 11300 N
Rec max speed 5300 rpm
Weight 1.3 kg
Insert <a href="advanced_search_result.php?keywords=1030-30DECG+insonly">1030-30DECG Click Here</a>
Casting group 4
Grease nipple thread 1/4 UNF, 1/4 inch x 28 TPI
