SKU: SF20A-RHP

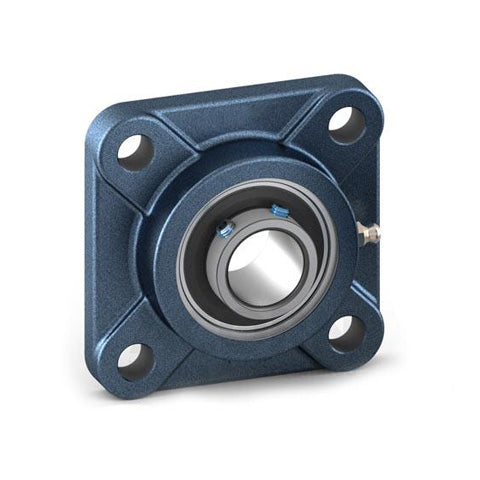

RHP SF20A Four Bolt Square Cast Iron Flange Housing and 20mm Bore Grub Screw Flat Back Insert

RHP SF20A Four Bolt Square Cast Iron Flange Housing and 20mm Bore Grub Screw Flat Back Insert
Regular price €37,79 ex VAT
Regular price Sale price €37,79 ex VAT
Sale Sold out

In stock

Price Break
10+ €28,72
20+ €27,10
30+ €26,78
40+ €26,46
50+ €26,14
75+ €25,81
100+ €24,20
200+ €23,88
250+ €23,55
500+ €23,23
1000+ €22,59
Quantity

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical
Bore 20mm
L 85.7mm
H 60.3mm
J 63.5mm
G 10mm
A 27.8
A1 37.26mm
A4 11.1mm
B1 25.77mm
s1 7.56mm
d1 28.5mm
Dynamic load Cr 12800 N
Static Load Cor 6650 N
Rec max speed 6700 rpm
Weight 0.7 kg
Insert <a href="advanced_search_result.php?keywords=1220-20AG+insonly">1220-20AG Click Here</a>
Casting group 2
Grease nipple thread 1/4 UNF, 1/4 inch x 28 TPI
